FR4 Fiberglass Sheet - 1-2-3mm Thickness, Water Green, Epoxy Plate, 3240
FR4 Fiberglass Sheet - 1-2-3mm Thickness, Water Green, Epoxy Plate, 3240
Regular price
$23.85 USD
Regular price
Sale price
$23.85 USD
Unit price
per
Couldn't load pickup availability

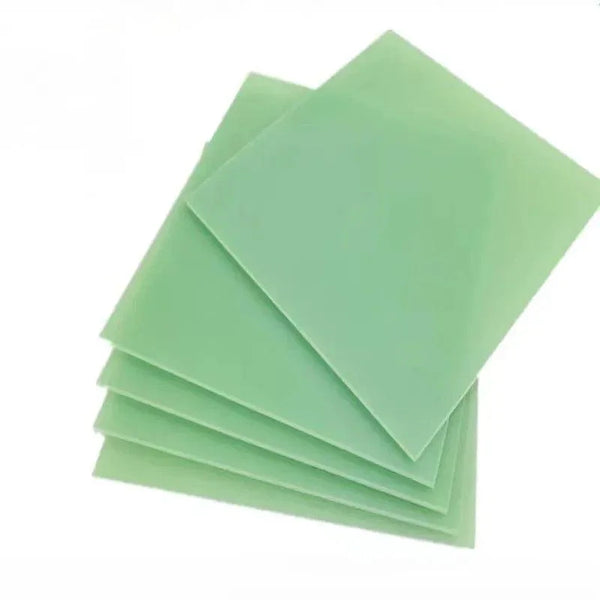

Discover our robust FR4 Fiberglass Sheet, perfect for a range of industries such as 3D printing, aerospace, automotive, marine, and medical. Our sheet is 1mm-3mm thick, long lasting, and available in water-green epoxy resin board. Experience superior strength and reliability with our superior quality FR-4 epoxy resin board!
FR4 Fiberglass Sheet
- High-strength, lightweight material

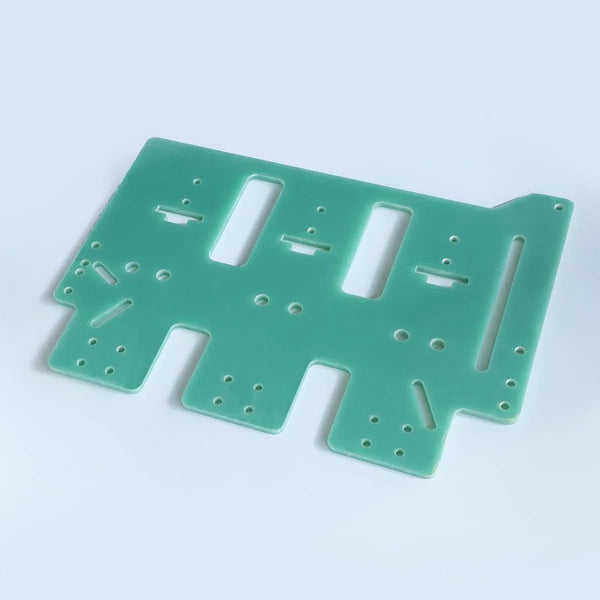

- Perfect for 3D printing and electronic manufacturing

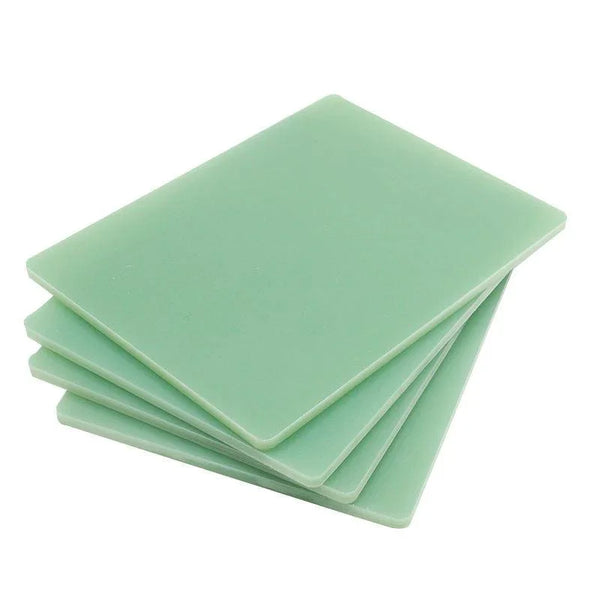

- Available in thicknesses of 0.2mm to 3mm

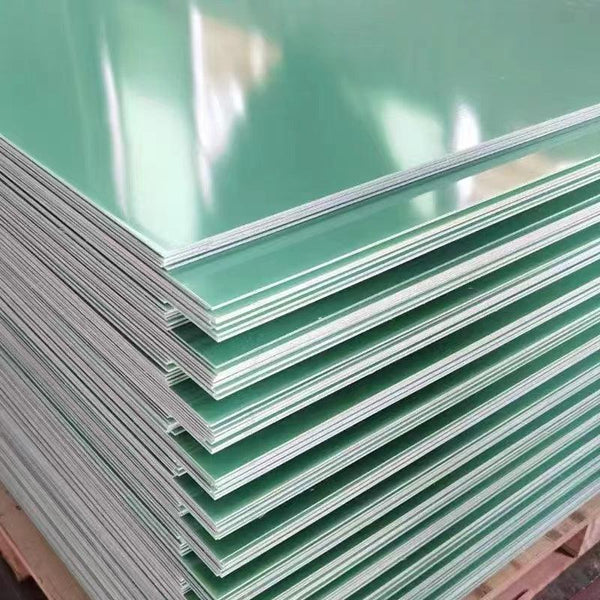

- Available in colors of water green, black, and white
Additional Information
- Made of FR4 epoxy resin
- Excellent electrical and mechanical properties
- Resistant to chemicals and heat
Applications
- 3D printing
- Electronic manufacturing
- Aerospace
- Automotive
- Marine
- Wind energy
- Solar energy
- Medical
- Military
- Industrial
Call to action
Order your FR4 fiberglass sheet today!
Conclusion
SPECIFICATIONS
Brand Name: Beeplastic
Origin: Mainland China
Model Number: 22110901
1/2/3mm thickness FR4 fiberglass sheet Water-green epoxy plate 3240 FR-4 epoxy resin board glass fibre 3D

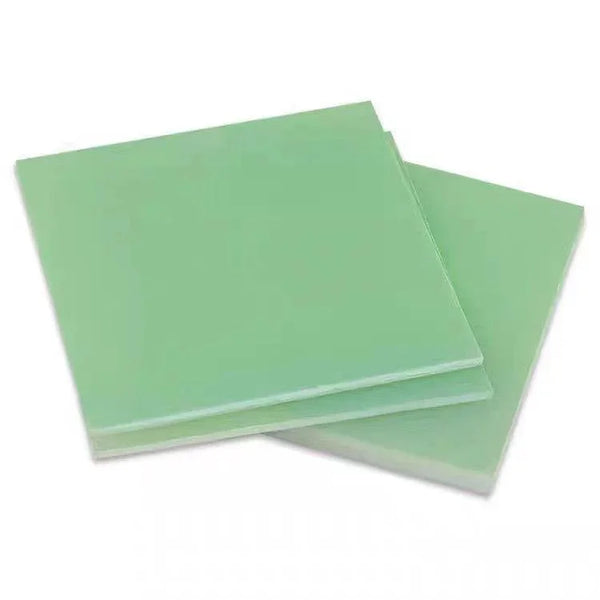

Product Price: 200x200mm 1Pcs / 300x300mm 1Pcs / 150x100mm 1Pcs /235x235mm 1Pcs / 330x330mm 1Pcs
Regular thickness: 0.1mm--50mm, please contact me if you need other thickness or other dimensions (in addition, you can set the thickness of 50MM-150MM）
3240 epoxy board meaning:
3240 is the national standard number, corresponding to the EPGC201 type in IEC893-3-2.
According to JB-T 2197-1996 electrical insulation material product classification, naming and model preparation method:
3240 four Arabic numerals:
The first 3 represents laminates, coiled products, vacuum pressure dipped products
The second place 2 represents the inorganic base laminate
The third 4 represents the temperature index level F (155 degrees)
The fourth digit 0 represents the product variety code
The 3240 epoxy laminate has a smooth surface, no air bubbles, no pits and wrinkles, but allows for other defects that do not affect the use, such as: scratches, indentations, stains and small spots. The edges should be cut neatly and the end faces must be free of delamination and cracks.
Executive standard: GB/T1303.1-1998.
Temperature rating: Class B
Color: natural (yellow), green, etc.
Characteristics: The cured epoxy resin system has excellent mechanical properties, high strength at medium temperature, and good electrical stability under high humidity.
Electrical: The cured epoxy resin system is an excellent insulating material with high dielectric properties, surface leakage resistance and arc resistance.
Uses: Suitable for mechanical, electrical, electronic, electrical and other fields. Also used for the processing of insulating parts, processing into various types of insulating parts and equipment insulation structural parts.
The reaction of the epoxy resin and the curing agent used is carried out by a direct addition reaction or a ring-opening polymerization reaction of an epoxy group in a resin molecule, without the release of water or other volatile by-products. They exhibit very low shrinkage (less than 2%) during curing compared to unsaturated polyester resins and phenolic resins.
