How to Choose the Right FR4 Fiberglass Sheet for Your Accessory Needs

In the quest for the perfect accessory, the choice of materials can make or break your project. "How to Choose the Right FR4 Fiberglass Sheet for Your Accessory Needs" is your essential guide to navigating the complexities of FR4 fiberglass sheets, ensuring you select the best material for your unique requirements. This comprehensive blog post delves into the technical specifications of FR4 sheets, highlighting the importance of understanding thickness, size, and thermal resistance to match your project's demands.

We'll explore the critical role of quality in your selection process, providing insights on how to identify high-quality FR4 materials that promise durability and optimal performance. The discussion extends to comparing FR4 fiberglass sheet suppliers, offering practical advice on evaluating reliability, cost, material consistency, and customer service to find a supplier that meets your standards.

Understanding the versatile applications of FR4 sheets in accessory design is crucial. This post showcases innovative uses of the material, demonstrating how its characteristics can enhance various types of accessories. Finally, we share tips for working with FR4 sheets, covering essential techniques for cutting, drilling, and finishing, ensuring you can maintain material integrity and achieve your desired aesthetic and functional outcomes.

Whether you're a seasoned accessory maker or embarking on your first project, this blog post will arm you with the knowledge to make informed decisions about FR4 fiberglass sheets, elevating the quality and uniqueness of your accessories.

Understanding FR4 Fiberglass Sheet Specifications

When embarking on any project that requires FR4 fiberglass sheets, understanding the material's technical specifications is crucial. These specifications not only determine the sheet's suitability for your specific application but also its performance and durability. Let's delve deeper into the key aspects you should consider.

Thickness and Size

The thickness and size of FR4 fiberglass sheets are among the first specifications to consider. Thickness can vary widely, typically ranging from as thin as 0.1mm to over 3.0mm. The choice of thickness directly impacts the rigidity and strength of the final product. For instance, thinner sheets might be preferred for lightweight accessories where flexibility is a benefit, while thicker sheets are ideal for more robust applications requiring higher mechanical strength.

Size is another critical factor. FR4 sheets come in various standard sizes, and some suppliers offer custom cutting services to meet specific project dimensions. It's essential to select a size that minimizes waste while accommodating your design's dimensions.

Thermal Resistance

Thermal resistance is a key feature of FR4 fiberglass sheets, making them suitable for a wide range of applications, including those exposed to high temperatures. This specification is particularly important for electronic accessories, where heat dissipation is a concern. The thermal resistance of FR4 ensures that it can withstand and protect components from the heat generated by electronic operations without degrading.

Understanding the thermal properties of FR4 is crucial for ensuring the longevity and reliability of your project. It's not just about withstanding high temperatures but also about ensuring that the material's integrity remains intact over its intended lifespan, even in fluctuating environmental conditions.

Selecting the Right FR4 Sheet for Your Project

Choosing the right FR4 fiberglass sheet involves balancing these specifications with your project's requirements. Consider the environment in which the final product will be used, the mechanical stresses it will endure, and any electrical properties it needs to support.

For those new to working with FR4, consulting with suppliers can provide valuable insights. They can offer guidance on the most appropriate specifications for your application and may suggest custom solutions that perfectly fit your needs. Additionally, exploring online resources and forums can help you gain a deeper understanding of how others have successfully utilized FR4 sheets in similar projects.

By paying close attention to the thickness, size, and thermal resistance of FR4 fiberglass sheets, you can ensure that your project not only meets but exceeds expectations. This foundational knowledge empowers you to make informed decisions, leading to the successful completion of high-quality, durable accessories tailored to your specific needs.

The Importance of Quality in FR4 Fiberglass Sheets

Selecting high-quality FR4 fiberglass sheets is paramount for anyone involved in the manufacturing of accessories. The quality of these sheets directly influences the durability, performance, and overall success of the final product. Understanding the characteristics of high-quality FR4 materials and how to identify them is essential for ensuring your projects stand out in terms of reliability and longevity.

Identifying High-Quality FR4 Materials

High-quality FR4 sheets are characterized by their uniformity in thickness, consistency in color and texture, and absence of defects such as bubbles, wrinkles, or delaminations. These attributes are critical as they affect the material's mechanical strength and electrical insulation properties, which are vital for many accessory applications, especially in the electronics industry.

Uniformity in Thickness: A consistent thickness across the entire sheet ensures that the material behaves predictably during machining and in its final application. Variations can lead to weaknesses in the material, affecting the structural integrity of the finished product.

Consistency in Color and Texture: While aesthetic considerations might not be the primary concern for all projects, consistency in color and texture can be an indicator of the material's quality. Inconsistencies may suggest variations in the manufacturing process, which could impact the material's performance.

Absence of Defects: Defects such as bubbles or delaminations compromise the structural integrity of FR4 sheets. These flaws can significantly reduce the material's strength and its ability to function as an electrical insulator.

Ensuring Durability and Performance

The durability and performance of accessories manufactured with FR4 fiberglass sheets hinge on the material's quality. High-quality FR4 sheets offer excellent mechanical strength, making them resistant to cracking or breaking under stress. This is particularly important for accessories that will be subjected to physical impacts or need to support weight.

Moreover, the thermal and electrical insulation properties of FR4 are crucial for electronic accessories. High-quality FR4 materials maintain their insulating properties over a wide range of temperatures, ensuring the safety and functionality of the device they are used in. This thermal resistance also contributes to the longevity of the product by protecting it from heat-related damage.

Selecting the Right Supplier

Identifying and procuring high-quality FR4 fiberglass sheets often comes down to selecting the right supplier. Look for suppliers with a strong reputation in the industry, known for their commitment to quality and consistency. It's beneficial to request samples or detailed specifications and, if possible, visit the supplier's manufacturing facility to witness their processes firsthand.

Engaging with suppliers who are transparent about their manufacturing processes and quality control measures can provide assurance that the FR4 sheets you purchase will meet your high standards. Additionally, suppliers who are willing to provide technical support and advice can be invaluable partners in selecting the right materials for your projects.

By prioritizing the quality of FR4 fiberglass sheets, manufacturers can ensure that their accessories stand the test of time, both in terms of physical durability and performance. High-quality materials lead to high-quality products, satisfying both the maker and the end user.

Comparing FR4 Fiberglass Sheet Suppliers

Choosing the right supplier for FR4 fiberglass sheets is a critical decision that can significantly impact the quality and success of your projects. When comparing suppliers, it's essential to evaluate several key factors, including reliability, cost, material consistency, and customer service. These elements play a pivotal role in ensuring you receive high-quality materials that meet your specifications and are delivered in a timely and cost-effective manner.

Evaluating Supplier Reliability

Reliability is a cornerstone of any supplier relationship. A reliable supplier not only delivers products on time but also ensures that each delivery meets the agreed-upon quality standards. Assessing a supplier's reliability involves looking at their track record, including their history of on-time deliveries and their ability to maintain quality over time. Seeking feedback from current or past customers can provide valuable insights into a supplier's reliability.

Understanding Cost Implications

While cost is an important consideration, it should not be the sole factor in selecting a supplier. The lowest price might not always equate to the best value, especially if it compromises quality or reliability. Consider the total cost of ownership, which includes not just the purchase price but also any additional costs related to shipping, handling, and potential quality issues. A supplier that offers competitive pricing without sacrificing quality or service can offer the best value in the long run.

Assessing Material Consistency

Material consistency is crucial for ensuring that every FR4 fiberglass sheet you receive performs as expected. Inconsistent materials can lead to production issues, increased waste, and potentially defective products. Evaluate suppliers based on their ability to provide consistent quality across batches. This may involve reviewing quality control processes, asking for samples from different batches, or even visiting the supplier's facility to observe their manufacturing and quality assurance practices firsthand.

Prioritizing Customer Service

Excellent customer service is another critical factor to consider. A supplier that is responsive, knowledgeable, and willing to go the extra mile can make a significant difference, especially when unexpected issues arise. Look for suppliers that offer strong technical support, are transparent about their processes, and are proactive in communicating any potential delays or issues. A partnership approach, where the supplier is willing to work closely with you to meet your specific needs, can be highly beneficial.

Making the Right Choice

Comparing FR4 fiberglass sheet suppliers requires a balanced approach, weighing each of these factors carefully. Start by shortlisting suppliers that meet your basic requirements in terms of product specifications and delivery capabilities. From there, conduct a more in-depth evaluation based on reliability, cost, material consistency, and customer service.

Requesting quotes, samples, and references from each supplier can provide a comprehensive view of what each can offer. Additionally, consider the long-term aspects of the partnership, such as the supplier's capacity to grow with your business and their commitment to ongoing quality and innovation.

Selecting the right supplier is not just about finding a source for FR4 fiberglass sheets; it's about establishing a partnership that will contribute to the success of your projects and the satisfaction of your customers. By carefully considering each of these factors, you can make an informed decision that aligns with your business goals and quality standards.

FR4 Fiberglass Sheet Applications in Accessory Design

The versatility of FR4 fiberglass sheets has made them a material of choice in a wide range of accessory design applications. Known for their excellent mechanical strength, thermal resistance, and electrical insulation properties, FR4 sheets offer designers and manufacturers a robust foundation for innovative and durable products. Let's delve into the diverse applications of FR4 sheets in accessory design, highlighting how their unique characteristics can benefit specific types of accessories.

Electronics Enclosures and Components

One of the most common applications of FR4 sheets is in the design and manufacture of electronics enclosures and components. The material's inherent electrical insulation properties make it ideal for protecting sensitive electronic circuits from both physical and electrical interference. Accessories such as custom PCB (Printed Circuit Board) mounts, protective casings for wearable technology, and drone components benefit from FR4's durability and thermal stability, ensuring reliable performance even under extreme conditions.

Custom Mechanical Parts

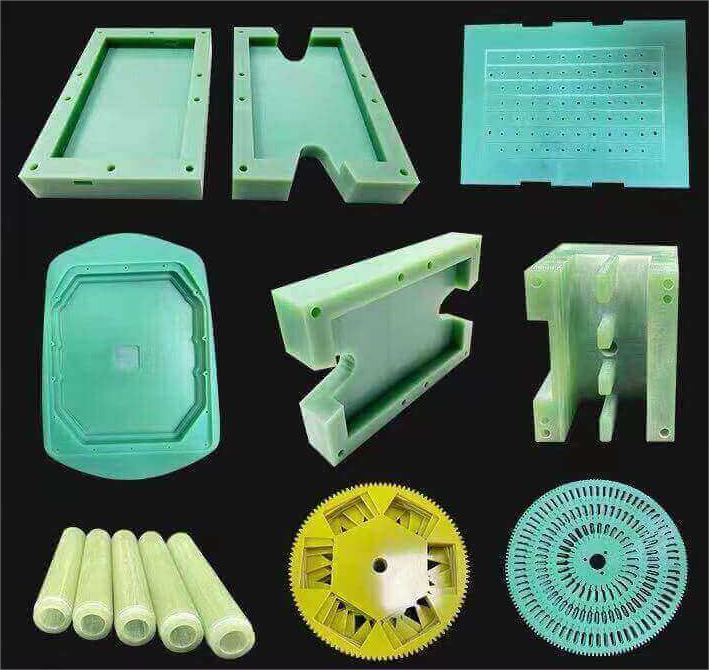

FR4's mechanical strength and ease of machining also make it suitable for creating custom mechanical parts for accessories. This includes gears, brackets, and structural components in robotics, automotive accessories, and even musical instruments. The material's resistance to moisture and chemicals further enhances the longevity and reliability of these parts, making FR4 a preferred choice for accessories exposed to harsh environments.

Heat-Resistant Barriers and Insulators

The thermal resistance of FR4 fiberglass sheets is a critical feature for accessories requiring heat insulation. This makes FR4 an excellent choice for creating heat-resistant barriers in consumer electronics, such as laptops and smartphones, where managing internal heat is crucial for performance and safety. Additionally, FR4 is used in designing insulators for kitchen appliances and other high-temperature environments, protecting users and sensitive components from heat exposure.

Aesthetic and Functional Design Elements

Beyond its functional benefits, FR4 can also be used to add aesthetic and tactile elements to accessories. Its surface can be treated, painted, or printed on, allowing for a range of visual designs. This versatility opens up possibilities for incorporating FR4 into fashion accessories, decorative elements in tech gadgets, and even in the creation of durable, lightweight jewelry pieces. The ability to customize the appearance of FR4 sheets meets the growing demand for personalized and unique accessory designs.

Prototyping and Customization

The ease of machining and fabricating FR4 fiberglass sheets makes them an excellent material for prototyping new accessory designs. Designers can quickly and cost-effectively create prototypes to test form, fit, and function, accelerating the development process for innovative accessories. This capability is invaluable in custom accessory design, where each piece may require a unique approach or fit.

Leveraging FR4 in Accessory Design

The applications of FR4 fiberglass sheets in accessory design are as varied as the imagination of the designers who use them. From creating durable components that withstand extreme conditions to adding unique design elements that set products apart, FR4 offers a combination of physical and aesthetic properties that can enhance a wide range of accessories. Its role in the development of innovative, high-quality accessories continues to grow, driven by the material's versatility, durability, and adaptability to various design needs.

Tips for Working with FR4 Fiberglass Sheets

Working with FR4 fiberglass sheets requires a thoughtful approach to maintain material integrity and achieve the high-quality finishes that are essential for professional accessory manufacturing. From cutting and drilling to the final finishing touches, each step in the process demands specific techniques to ensure the best outcomes. Here are practical tips for handling and machining FR4 sheets effectively.

Cutting FR4 Fiberglass Sheets

When cutting FR4 sheets, using the right tools is crucial to prevent chipping and fraying, which can compromise the material's structural integrity. Carbide-tipped cutting tools are recommended due to their hardness and resistance to wear. A CNC machine provides precision cuts for complex shapes and sizes, but if you're using manual tools, a fine-toothed saw blade is preferable. Always secure the sheet firmly to minimize vibrations and ensure a clean cut.

Drilling Techniques

Drilling into FR4 fiberglass sheets requires precision to avoid cracking or delamination. Begin with a small pilot hole to guide the drill bit and reduce the risk of slipping. Using drill bits made for working with fiberglass or carbide-tipped bits can significantly improve the quality of the holes and extend the life of your tools. Keep the drill speed moderate to prevent overheating, which can damage both the material and the drill bit.

Finishing Techniques

Achieving a smooth finish on FR4 fiberglass sheets is essential for both aesthetic and functional reasons. Sanding is a common finishing technique, but it should be done with care. Start with a coarse grit sandpaper to remove any major imperfections and gradually work your way up to a finer grit for a smooth finish. Wet sanding can be used to minimize dust, which is particularly important when working with fiberglass due to its potential health hazards. Always wear protective gear, including a dust mask or respirator, and work in a well-ventilated area.

Maintaining Material Integrity

Maintaining the integrity of FR4 sheets during machining is paramount. Avoid excessive force or speed during cutting and drilling, as this can cause heat buildup and damage the material. Additionally, supporting the sheet adequately during these processes can prevent unwanted bending or breaking. When gluing or bonding FR4 parts, use adhesives compatible with fiberglass to ensure a strong bond without damaging the material.

Achieving Desired Outcomes

To achieve the desired outcomes when working with FR4, planning and precision are key. Always measure and mark your cuts and drill points accurately to ensure that the final product meets your specifications. Test your machining processes on scrap pieces before working on your final piece to fine-tune your technique and tool settings.

Working Safely with FR4

Safety should always be a priority when working with FR4 fiberglass sheets. The material can produce sharp edges when cut and hazardous dust when sanded or drilled. Wearing protective gloves, eye protection, and a respirator can protect you from injuries and health risks associated with fiberglass particles. Ensuring a clean and organized workspace can also help prevent accidents and improve the quality of your work.

By following these tips for cutting, drilling, and finishing FR4 fiberglass sheets, you can enhance the quality and durability of your accessories while maintaining a safe working environment.
