Unveiling the Unique Properties of G10: A Premier Electrical Insulation Material
G10 stands as a pivotal material in the realm of electrical insulation, primarily due to its composition as a high-pressure fiberglass laminate. This material is not only integral to maintaining safety standards across various industries but also enhances the functionality and longevity of electrical systems. Recognized for its robust insulative properties, G10 is crafted through the impregnation of woven glass fibers with an epoxy resin, which is then subjected to both high pressure and temperature to cure. This process solidifies G10’s role as a critical component in numerous industrial applications, ensuring reliable performance under demanding conditions.
🎉🎉🎉Limited Time Offer Use code: QR4GNY08SHVR at checkout and enjoy a special discount on your entire order! 👉 FR4 fiberglass plastic
The Engineering Behind G10: Composition and Manufacturing
The precision engineering of G10 begins with layering fiberglass fabric and saturating it with an epoxy resin binder. These layers are then compressed under high pressure and temperature to achieve a dense, rigid material with high dielectric strength and mechanical stability. This meticulous process ensures consistent quality, making G10 a reliable choice for critical applications.
Key Characteristics of G10 That Elevate Its Performance
- Exceptional Dielectric Strength: Ensures electrical isolation and safety.
- Moisture Resistance: Prevents performance degradation in humid conditions.
- Thermal Stability: Retains insulating properties even in high-temperature environments.
- Chemical Resistance: Offers durability against harsh substances.
Applications of G10 Across Industries
G10 is indispensable in fields such as:
- Electronics: Used in circuit boards and as insulative layers for electrical panels.
- Machinery: Provides support and insulation for high-voltage equipment.
- Transformers: Acts as a reliable insulative material in high-stress environments.
Tailored G10 Solutions for Specialized Needs
The adaptability of G10 allows for custom shapes and sizes to meet unique requirements. Processes like CNC machining and precision cutting enhance its usability, particularly for complex industrial designs.
Why G10 Is the Industry Standard for Insulation
G10's combination of lightweight strength, thermal endurance, and low moisture absorption solidifies its place as a standard for industrial electrical insulation. With its robust properties and adaptability, G10 continues to meet the evolving demands of modern applications.
Understanding G10 Material
G10, a composite material known for its robust composition and insulative properties, has become a cornerstone in various industrial applications. This engineered material is primarily made from layers of fiberglass cloth soaked in epoxy resin, which are then compressed under heat until the resin cures. The result is a material that not only excels in mechanical strength and durability but also provides exceptional electrical insulation.
The Origin and Evolution of G10
The development of G10 can be traced back to the need for materials that could provide superior electrical insulation and mechanical stability in demanding environments. Originating as a high-pressure laminate, G10 was engineered to meet rigorous standards of performance, particularly in the electrical and electronics industries. Its ability to resist electrical currents and maintain its structural integrity under high temperatures made it an ideal choice for a wide range of applications.
G10's Versatility in Industrial Uses
The versatility of G10 is evident in its widespread use across various sectors. From electronics, where it serves as circuit board material, to aerospace and defense applications, G10 provides a reliable solution for electrical insulation. Its properties are particularly beneficial in environments where other materials might fail due to heat, moisture, or chemical exposure.
Key Properties That Make G10 Ideal for Electrical Insulation
- High Dielectric Strength: G10's ability to withstand significant electrical stress makes it a preferred material for high-voltage applications.
- Thermal Resistance: It maintains its properties across a broad temperature range, ensuring performance stability under varying operational conditions.
- Chemical and Moisture Resistance: G10 resists corrosion and moisture, factors that can lead to material degradation in harsh environments.
Custom Applications and Adaptations of G10
Given its impressive properties, G10 has been adapted for custom applications where specific material characteristics are required. Through processes such as CNC machining and water jet cutting, G10 can be shaped and sized to meet unique design specifications, further enhancing its utility in specialized applications.
G10 continues to be a material of choice for engineers and designers seeking reliability and performance. Its ongoing development and adaptation for new applications underscore its importance and sustained relevance in the industrial sector.
Composition of G10: What is it Made Of?

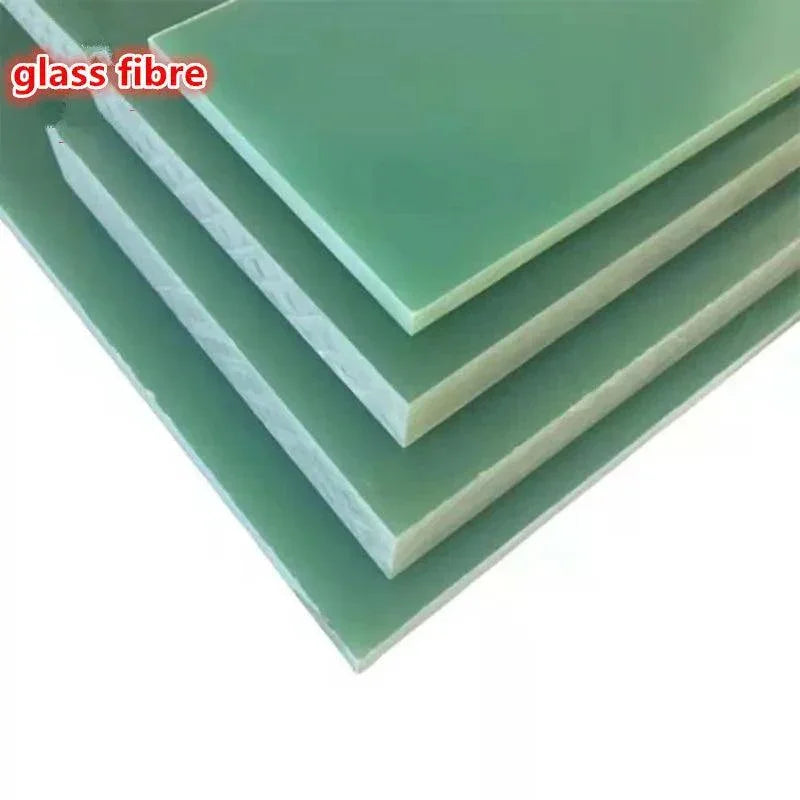

G10 is a distinguished composite material composed of two primary components: woven fiberglass fabric and epoxy resin. This specific combination is selected for its remarkable ability to fuse high mechanical strength with outstanding electrical insulating properties, making G10 an ideal choice for a multitude of industrial applications.
The Role of Woven Fiberglass Fabric in G10
The fiberglass fabric in G10 is carefully woven, ensuring uniform strength and durability across the material. This fabric not only provides structural integrity but also significantly enhances the thermal stability of the composite. The choice of fiberglass is crucial because it imparts the necessary tensile strength and flexibility required for demanding applications, ranging from electrical insulation panels to various structural components in machinery.
Epoxy Resin: The Binding Agent
Epoxy resin, known for its superior adhesive qualities and chemical resistance, acts as the perfect binder for the fiberglass fabric in G10. When these two components are combined, the resin matrix encases the fiberglass threads, sealing them against moisture and environmental hazards while enhancing the material's overall dielectric strength. This encapsulation process is critical for ensuring that G10 maintains its insulative properties even under extreme conditions.
How This Combination Benefits Industrial Applications
The synthesis of fiberglass and epoxy in G10 results in a material that is not only robust but also highly resistant to electrical currents. This makes G10 an exemplary material for use in high-voltage applications where safety and reliability are paramount. Moreover, the material’s inherent resistance to flame and low moisture absorption rate make it suitable for use in environments that experience wide temperature fluctuations and potential chemical exposures.
Tailoring G10 for Specific Needs
Due to its versatile nature, G10 can be customized in various forms including sheets, rods, and complex shapes, accommodating a broad spectrum of industrial needs. Through advanced manufacturing techniques such as CNC machining and water jet cutting, G10 can be precision-engineered to meet specific requirements, further extending its applicability across different sectors.
G10’s unique composition and the process by which it is manufactured play a pivotal role in its capabilities as a high-performance material in electrical insulation and beyond. This blend of properties ensures that G10 continues to be a critical material in the advancement of electrical safety and mechanical engineering.
Key Properties of G10 for Electrical Insulation
G10 material is widely acclaimed for its exceptional properties which make it an excellent choice for electrical insulation applications across various industries. This composite material, known for its G10 sheet and G10 material sheet forms, possesses a unique combination of characteristics that ensure optimal performance in electrical, mechanical, and environmental conditions.
High Dielectric Strength: Essential for Electrical Insulation
The high dielectric strength of G10 allows it to withstand high voltages, preventing electrical breakdowns. This property is particularly crucial in applications such as power generation, electrical panels, and circuit protectors where insulation integrity is key to maintaining system safety and efficiency. G10’s ability to act as an effective barrier against electrical currents ensures its indispensable role in high-voltage environments.
Low Moisture Absorption: Maintaining Performance in Humid Conditions
G10’s low moisture absorption is a critical factor in its effectiveness as an insulating material. This characteristic ensures that G10 retains its electrical insulating properties even in humid or wet environments, making it ideal for use in outdoor or marine applications where exposure to moisture is frequent. By preventing water absorption, G10 maintains its dimensional stability and prevents degradation, enhancing the longevity and reliability of the applications in which it is used.
Thermal Stability: Adaptable to Various Temperature Ranges
Thermal stability is another hallmark of G10, allowing it to maintain its structural integrity and performance across a wide range of temperatures. This property is vital for applications subjected to varying operational temperatures, such as aerospace and automotive industries, where materials must withstand extreme conditions without compromising their insulating capabilities. G10’s ability to resist thermal expansion and contraction ensures its effectiveness and durability in these challenging environments.
Mechanical Durability: High Strength and Resistance to Wear
The mechanical durability of G10 is evidenced by its high mechanical strength and resistance to wear. This makes it suitable for use in mechanically demanding applications where other materials might fail. Whether in heavy machinery, industrial gear, or consumer electronics, G10’s robustness ensures that it can endure physical stresses and continue to perform its insulating functions effectively.
Chemical Resistance: Withstanding Harsh Environments
Lastly, G10’s chemical resistance allows it to withstand exposure to a variety of chemicals, including acids, alkalis, and solvents. This property is essential in chemical processing plants, laboratories, and other settings where chemical exposure is common. G10’s ability to resist chemical corrosion contributes to its overall durability and suitability for a broad range of applications.
G10’s combination of high dielectric strength, low moisture absorption, thermal stability, mechanical durability, and chemical resistance makes it a preferred material for electrical insulation. Its adaptability and performance under extreme conditions make it an invaluable component in a variety of industrial applications, ensuring safety, efficiency, and longevity.
Applications of G10 in Electrical Insulation
G10 is extensively utilized in various sectors due to its exceptional properties as an insulation material. Its primary uses in electrical applications highlight its versatility and effectiveness, especially in environments that demand high reliability and safety.
G10 in Printed Circuit Boards (PCBs)
In the realm of electronics, G10 sheets serve as an excellent base material for Printed Circuit Boards (PCBs). This application leverages G10's high dielectric strength and thermal resistance, making it ideal for supporting intricate circuit layouts and high electrical loads. PCB manufacturers value G10 for its ability to maintain integrity and performance under the thermal stress of soldering and the operational heat generated by electronic components. This makes G10 a preferred choice over other materials for boards that require additional mechanical sturdiness and reliability.
Insulating Components in Transformers and Switchgear
G10 is also critical in the power transmission and distribution industry, particularly in transformers and switchgear. It is used to fabricate various insulating components, such as barriers, supports, and bus bar supports. These applications benefit significantly from G10's moisture resistance and excellent insulating properties, which ensure long-term reliability and functionality in managing high-voltage electrical flows. The use of G10 helps to prevent electrical failures, which are crucial in systems that distribute and regulate electrical power across extensive networks.
Structural Supports in Industrial Machinery
In industrial settings, G10 is often used as structural support in machinery that requires both mechanical strength and electrical insulation. This includes machines that operate under high electrical loads or that are exposed to harsh environmental conditions. G10 fiberglass panels and supports are deployed in these machines to isolate electrical parts from mechanical components, thereby safeguarding the equipment and enhancing operational safety. The durability of G10 under mechanical stress and its resistance to environmental factors such as chemicals and temperature fluctuations make it an indispensable material in heavy industry.
Customizing G10 for Specialized Applications
Given its robust characteristics, G10 can be customized into various forms, such as G10 fiberglass sheets and molded parts, to meet specific application requirements. Advanced manufacturing techniques allow for precise cutting and shaping of G10, ensuring that it fits perfectly into the designated components of electrical and industrial equipment.
Garolite G10, a particular form of G10, is used extensively for applications that require even higher mechanical strength and thermal stability. This variant is particularly popular in advanced engineering applications where traditional materials might not suffice.
The diverse applications of G10 highlight its importance as a material that provides safety, reliability, and efficiency across multiple industries. Its ability to perform under high stress and in severe environments makes it a cornerstone in the design and manufacture of electrical insulation systems.
Case Study: Custom G10 Components for Electronic Equipment
In the competitive field of electronic device manufacturing, one client faced the challenge of insulating sensitive equipment effectively. This required the creation of custom-shaped G10 components that could meet precise specifications and enhance the performance and safety of their devices.
Scenario: The Need for Precision and Reliability
A prominent manufacturer in the electronics sector needed customized G10 parts for insulating critical components within their devices. These parts had to be exceptionally precise to fit intricate designs and ensure optimal functionality. The requirement was not just for a material that could insulate but one that could be molded into complex shapes while maintaining its integral properties.
Solution: Employing Precision CNC Machining
To meet the client’s specific needs, precision CNC machining was utilized to produce these custom G10 parts. CNC (Computer Numerical Control) machining is renowned for its accuracy and versatility, making it ideal for crafting components with complex geometries and tight tolerances. By using this advanced manufacturing technique, it was possible to tailor the G10 material sheets to exact design requirements, ensuring each component fit perfectly within the electronic devices.
Outcome: Enhanced Device Reliability and Customer Satisfaction
The outcome of using customized G10 components in the client's electronic devices was significant. The precision-cut G10 parts provided excellent electrical insulation, which is crucial for the safety and functionality of electronic equipment. This adaptation not only enhanced the reliability of the devices but also significantly increased customer satisfaction. Users of these devices could trust in their safety and durability, thanks to the high-quality, bespoke G10 insulation components.
Long-term Impact: Setting Industry Standards
This case study exemplifies how tailored solutions in materials technology, like those provided by custom G10, can elevate the performance and safety standards of electronic equipment. As industries continue to demand higher precision and reliability, the role of materials like G10 and manufacturing processes such as CNC machining becomes increasingly pivotal. This approach not only meets the current needs of electronic manufacturers but also sets new benchmarks in the design and functionality of electronic devices.
Advantages of Using G10 for Electrical Insulation
G10 fiberglass is a premium material in the realm of electrical insulation due to its several distinct advantages. Known for its durability, versatility, and cost-effectiveness, G10 material stands out as a superior choice compared to other insulating materials.
Durability: Built to Last
One of the primary benefits of G10 is its remarkable durability. Made from woven fiberglass fabric and epoxy resin, G10 is designed to withstand harsh environments and severe mechanical stresses without degrading. Its high impact resistance ensures that it can endure physical shocks and abrasions, which are common in industrial settings. This durability extends the lifespan of applications that utilize G10, from electrical panels to machinery components, reducing the need for frequent replacements and maintenance.
Versatility: A Multitude of Applications
G10's versatility is another significant advantage. It can be easily fabricated into various shapes and sizes, which allows it to be used in a wide range of applications. From Printed Circuit Boards (PCBs) where it serves as a reliable base material to being an integral part of structural supports in industrial machinery requiring precise electrical insulation, G10's adaptability makes it invaluable. This adaptability also includes the ability to perform consistently across a broad spectrum of temperatures and environmental conditions, making it suitable for nearly any scenario where high-quality insulation is required.
Cost-Effectiveness: An Economical Choice
When it comes to cost-effectiveness, G10 offers significant savings over the long term. Its long lifespan and minimal maintenance requirements mean fewer expenditures on part replacements and repairs. Furthermore, its ease of fabrication can lead to reduced labor costs during the manufacturing and installation processes. For businesses looking to optimize their investment in insulation materials, G10 presents a compelling option that balances upfront costs with enduring value.
Superior Performance Compared to Other Materials
In comparison to other insulating materials, G10 often comes out ahead. Its superior dielectric strength makes it more effective at preventing electrical leakage and failures. Moreover, unlike materials such as phenolic or some plastics, G10 does not degrade quickly under mechanical stress or in harsh chemical environments. Its thermal stability ensures that it remains effective under temperature extremes where other materials might fail.
G10's combination of high-performance, adaptability, and economic efficiency make it a standout material in electrical insulation. Its ability to meet rigorous demands in a variety of industrial applications further cements its place as a preferred choice for professionals in the electrical and electronics sectors.
Custom Processing Services for G10 Materials
G10 sheets and G10 material sheets are highly sought after for their superior insulation properties and mechanical strength, making them ideal for a variety of industrial applications. Custom processing of these materials allows for specific client requirements to be met with precision, catering to a broad range of applications from electronics to heavy industrial machinery.
Custom Fabrication Techniques
To accommodate specific design requirements, custom fabrication services such as cutting, machining, and finishing are essential. Customized G10 materials undergo several processing steps:
Cutting and Shaping
Precision cutting technologies, including CNC machining and waterjet cutting, are employed to shape G10 sheets into detailed configurations required by clients. These methods ensure high accuracy and consistency, crucial for components that must fit into complex assemblies.
Machining for Precision
CNC machining services are particularly valuable for creating precise geometries in G10 materials. This process allows for the production of components with tight tolerances and complex shapes, essential for electrical insulation and mechanical support in sensitive electronic equipment.
Finishing for Functionality and Aesthetics
The finishing process involves smoothing the edges and surfaces of G10 components, which not only enhances their appearance but also ensures safety and functionality in end-use applications. Techniques such as grinding and polishing are used to achieve the desired surface quality.
Meeting Client Specifications
The ability to meet specific client requirements is a hallmark of custom G10 processing services. Whether a project requires unique dimensions, specific mechanical properties, or particular electrical insulation capabilities, tailored solutions are available. This flexibility makes G10 an advantageous choice for industries that demand high precision and reliability.
Applications Across Industries
From the electronics sector, where G10 is used for circuit boards and insulators, to more demanding mechanical applications in industrial machinery, the ability to customize G10 materials is critical. This adaptability not only meets diverse industrial needs but also enhances the efficiency and safety of the equipment in which these materials are used.
Custom processing services for G10 materials showcase the versatility and functionality of this composite material. By offering cutting, machining, and finishing tailored to client needs, providers ensure that G10 continues to be a preferred material for applications requiring high performance and precise specifications.
Frequently Asked Questions about G10
G10 is a popular choice for electrical insulation due to its composite nature, primarily made of fiberglass and epoxy resin. As such, it garners various inquiries about its capabilities and suitability compared to other materials. Here, we address some common questions regarding G10.
How does G10 differ from other fiberglass laminates?
G10 stands out among fiberglass laminates due to its superior mechanical strength and excellent electrical insulation properties. Unlike other fiberglass laminates that may prioritize cost over quality, G10 is designed for high performance and reliability. Its unique composition of woven fiberglass fabric and epoxy resin provides exceptional dielectric strength and durability, making it ideal for demanding applications where structural integrity and insulation are critical.
Is G10 suitable for high-temperature environments?
Yes, G10 is highly suitable for environments that experience high temperatures. It maintains its structural stability and insulating properties under significant thermal stress, making it an excellent material for applications in the aerospace, automotive, and industrial sectors where temperature fluctuations are common. G10's thermal resistance ensures that it does not become brittle or degrade in high-heat conditions, unlike some plastics or lower-grade laminates.
Can G10 be used in outdoor applications?
G10 is also well-suited for outdoor applications due to its excellent moisture resistance and durability against environmental elements. Its chemical resistance to corrosion and ability to withstand UV exposure without significant degradation make it a reliable choice for outdoor electrical insulation needs. Whether used in marine applications or outdoor electrical housings, G10 retains its performance characteristics, providing long-lasting protection and stability.
These attributes highlight why G10 material is favored over other materials for a wide range of applications, offering durability, versatility, and cost-effectiveness that few other materials can match.
