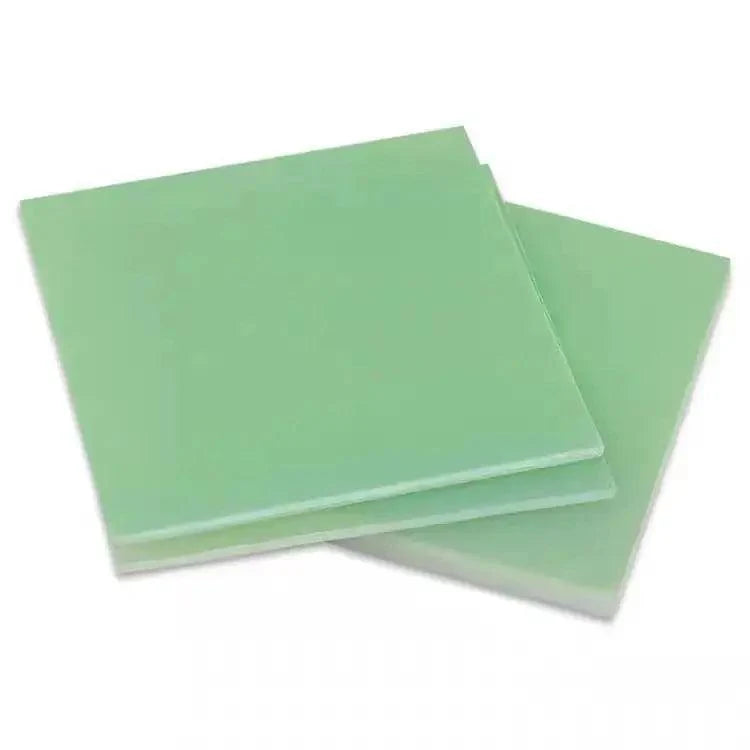

Understanding Glass Epoxy Laminates: G10 vs FR4
G10 and FR4 are both types of glass epoxy laminates, widely used due to their outstanding mechanical strength and electrical insulation capabilities. However, the significant differences in their properties and typical applications stem primarily from one key feature—flame retardancy.
Composition and Properties
Both G10 and FR4 are composed of woven fiberglass cloth impregnated with an epoxy resin binder. This combination is cured under high pressure and temperature to create a high-strength, rigid laminate. These materials are known for their excellent dielectric properties, moisture resistance, and thermal stability, making them ideal for a variety of demanding applications.
G10 is renowned for its superior mechanical strength and durability, attributes that make it suitable for use in heavy-duty mechanical applications. It can withstand extreme environments, which is why it's commonly used in the aerospace and marine industries.
FR4, on the other hand, includes a flame retardant additive that makes it essential for use in electronics, particularly in printed circuit boards (PCBs). This flame retardancy allows FR4 to meet various industry standards, such as the UL 94V-0, which tests for the material's ability to extinguish a flame after it ignites. This makes FR4 a safer choice for electronic applications where fire risk is a concern.
The Importance of Flame Retardancy in FR4
The flame retardant properties of FR4 are not just a regulatory compliance feature but a crucial safety measure in its primary application—printed circuit boards for electronic devices. The additive used in FR4 reduces the risk of fire hazards in electronics, which can result from circuit failure or other malfunctions.
This characteristic is particularly important in consumer electronics, automotive applications, and other sectors where electronic devices are under constant stress and near users. As such, FR4's ability to halt the spread of fire can prevent damage to both the device and its surroundings, safeguarding user safety and preventing potential losses.
Applications of G10 and FR4
While FR4's applications are heavily centered around its role in PCBs within electronic devices, due to its excellent electrical insulation and flame-retardant properties, G10 is preferred in applications where strength, stability, and moisture resistance are more critical than flame resistance. These include:
- Aerospace components: where its high strength-to-weight ratio ensures performance under extreme conditions.
- Marine applications: where its resistance to water and ability to withstand harsh environments is crucial.
- Sports equipment: where durability and resistance to environmental factors are necessary.
CNC Machining and Custom Fabrication
Both G10 and FR4 are suitable for CNC machining, which allows for precise and custom-shaped components to be manufactured. This capability is crucial for producing tailored parts required in specialized applications across various industries. Whether it's creating intricate components for electronic devices from FR4 or crafting robust mechanical parts from G10, CNC technology plays a vital role in exploiting the unique properties of these materials.
In conclusion, while G10 and FR4 share some basic material characteristics, their distinct differences in flame retardancy and resultant safety implications make FR4 the material of choice for electronics and other fire-sensitive applications, while G10 continues to be preferred in environments where mechanical strength and resistance to environmental factors are paramount.
Flame Retardant Properties of FR4: What Makes It Unique?
FR4 stands out in the realm of glass epoxy laminates due to its excellent flame retardant properties, which make it a top choice for high-temperature insulation and printed circuit boards (PCBs). One of the key differentiators between FR4 and similar materials like G10 is its flame resistance, which is critical in electronics and industrial applications. In this section, we will explore the flame retardant additive that gives FR4 its unique properties and how it meets stringent standards, like UL 94V-0, to ensure safety and reliability in demanding environments.
What Makes FR4 Flame Retardant?
The flame retardant properties of FR4 are attributed to the presence of a brominated epoxy resin. Bromine compounds, known for their fire-suppressing qualities, are used as additives in the epoxy resin that binds the fiberglass layers together. When exposed to high temperatures or flames, this brominated resin creates a charring effect that helps prevent the material from igniting and spreading fire. Instead of burning, FR4 slows down the combustion process, making it self-extinguishing in many cases.
This self-extinguishing characteristic is essential in electronic applications, especially in printed circuit boards (PCBs), where electronic components can heat up or malfunction, posing a risk of fire. By using flame retardant FR4FR-4 G10 Fiberglass Epoxy Sheets | Durable G10 Material & Laminates – beeplastic, manufacturers can reduce the potential for fire hazards, ensuring greater safety in consumer electronics, automotive applications, and other industrial sectors.
Meeting the UL 94V-0 Standard
The UL 94V-0 rating is a globally recognized safety standard for flammability, particularly for materials used in electrical and electronic components. To meet this standard, a material must pass a series of rigorous flame tests. The UL 94V-0 test evaluates a material’s ability to resist flames and its behavior when exposed to fire, particularly how quickly it self-extinguishes and whether it drips flaming particles.
FR4 achieves the UL 94V-0 rating because of its inherent flame retardant properties. The test involves exposing the material to a flame for a set period and then observing how quickly it extinguishes. Materials rated V-0 must stop burning within 10 seconds after the removal of the flame and must not drip flaming particles that could ignite other materials.
This makes FR4 an ideal choice for PCBs and high-temperature insulation in electronics, as it significantly reduces the risk of fires in sensitive equipment. It also helps manufacturers meet safety regulations for electronic devices used in homes, offices, automobiles, and even industrial machinery.
Applications of Flame Retardant FR4 in Electronics
Because of its flame retardancy, FR4 is extensively used in electronics, particularly in the production of printed circuit boards. PCBs are at the heart of virtually every modern electronic device, from smartphones and laptops to more complex systems like automotive electronics and industrial control systems.
In such applications, FR4 provides not only flame resistance but also crucial electrical insulation, ensuring that electrical currents do not cause short circuits or other malfunctions. The material’s ability to withstand high temperatures without losing its structural integrity or insulation properties makes it indispensable in these settings.
Moreover, FR4's flame retardancy ensures that even in the event of overheating or malfunction, the risk of fire is minimized, safeguarding both the device and its user. This is especially critical in consumer electronics, where safety is a top priority, as well as in automotive and aerospace systems, where component failure can lead to catastrophic results.
Why Choose FR4 for High-Temperature Insulation?
When it comes to high-temperature insulation, FR4 is a reliable choice due to its ability to perform under extreme heat. While other materials may degrade or ignite, FR4’s flame retardant additive ensures it remains stable even when exposed to high temperatures. This stability is particularly important in power electronics and high-voltage systems, where components may heat up during prolonged use.
Furthermore, FR4’s resistance to fire makes it ideal for use in environments where safety standards are stringent, such as automotive electronics, medical devices, and aerospace systems. Its ability to maintain dimensional stability and mechanical strength under heat stress, along with its flame retardant properties, makes it a superior material for a wide range of industrial applications.
By using FR4 for high-temperature insulation, manufacturers can ensure the longevity and safety of their products, protecting both the equipment and users from the dangers of overheating and fire.
G10 Mechanical Strength: When Flame Resistance Isn't Required
G10 is known for its exceptional mechanical strength, making it the go-to material in industries where flame resistance is not a priority but durability and toughness are critical. Its superior tensile strength, resistance to impact, and ability to perform under stress make it invaluable in sectors like aerospace, mechanical components, and marine environments. Let’s delve into the mechanical properties of G10 and explore why it excels in demanding applications.
The Mechanical Strength of G10
G10, a high-pressure fiberglass laminate, is composed of multiple layers of fiberglass cloth that are saturated with epoxy resin and then cured under heat and pressure. This process creates a material with outstanding tensile and flexural strength, allowing it to endure mechanical stress without deforming.
Its mechanical properties, particularly its flexural strength, typically exceed 75,000 psi, which makes it ideal for applications where materials must withstand high stress, pressure, or impact. In fact, G10’s strength-to-weight ratio is one of its greatest advantages, offering durability without adding unnecessary weight. This feature is highly valued in industries where both strength and weight are key considerations, such as aerospace and sports equipment manufacturing.
G10 in Aerospace and High-Performance Environments
One of the key applications of G10 is in the aerospace industry, where its combination of strength, dimensional stability, and thermal resistance is crucial. In aerospace components, materials are exposed to extreme environmental conditions, including high levels of mechanical stress and fluctuating temperatures. G10 performs exceptionally well in these environments because it maintains its structural integrity under extreme forces while resisting moisture and temperature changes.
In addition, the lightweight nature of G10 makes it ideal for use in aircraft parts, where reducing weight is essential for fuel efficiency and performance. From insulators and mechanical supports to aircraft interiors, G10 can be found in a wide range of aerospace applications, offering both reliability and performance under the toughest conditions.
Mechanical Components and Industrial Applications
Beyond aerospace, G10 is widely used in the production of mechanical components for industrial machines and equipment. Its ability to endure impact, vibration, and constant movement makes it a popular choice for high-performance machinery. Whether it's used in machine parts, bushings, or structural components, G10’s mechanical strength ensures that it can withstand repeated stress without cracking or deforming.
Its excellent chemical resistance also adds to its versatility in industrial environments where exposure to corrosive substances and harsh chemicals is common. G10 retains its strength even when exposed to oil, acids, and other industrial chemicals, making it an indispensable material in industries like automotive, marine, and heavy machinery.
CNC Machining of G10 for Custom Components
The machinability of G10 is another factor that contributes to its wide range of applications. CNC machining of G10 allows manufacturers to create custom parts with high precision. Whether it’s for insulating washers, mechanical spacers, or high-strength structural parts, G10 can be machined into complex shapes while maintaining its structural integrity. This precision makes G10 particularly useful in custom industrial projects, where components often need to be tailored to meet exact specifications.
G10 in Marine and Extreme Environments
Due to its excellent moisture resistance and durability in harsh conditions, G10 is a trusted material in marine applications. Components made from G10 can resist saltwater, humidity, and extreme weather, all while maintaining their structural integrity. From boat hulls and marine supports to underwater connectors, G10’s mechanical properties make it the material of choice for maritime industries.
Its resistance to both high pressure and corrosive environments ensures that G10 components perform well over time, even in the most challenging marine settings.
In environments where mechanical strength is critical but flame resistance isn’t required, G10 is unmatched. Its ability to endure high mechanical loads, resist moisture, and maintain its structural integrity in extreme environments makes it a vital material across various industries. From aerospace to marine applications, G10’s versatility and reliability ensure that it remains a cornerstone material in the production of high-performance components.
How FR4 Printed Circuit Boards Ensure Electrical Insulation and Fire Safety
FR4 is a widely used material in printed circuit boards (PCBs) because of its unique combination of electrical insulation and fire safety properties. These characteristics make it ideal for electronic devices, where both performance and safety are essential. Let's break down the reasons why FR4 plays such a critical role in ensuring that PCBs remain safe and functional in various applications.
Electrical Insulation Properties of FR4
One of the key reasons FR4 is the material of choice for PCBs is its excellent electrical insulation laminate properties. This material, which is a glass-reinforced epoxy laminate, is designed to prevent electrical currents from flowing where they shouldn’t, ensuring that electronic components do not short-circuit or malfunction due to unintended connections.
The dielectric properties of FR4 are a result of its glass-fiber composition, which creates a robust barrier against electrical current. This is critical in devices like smartphones, computers, and industrial machinery, where multiple electrical circuits need to operate without interference. FR4’s insulation properties protect sensitive electronic components by keeping the electrical pathways separate, thus maintaining the overall integrity and performance of the device.
Fire Safety Through Flame Retardancy
What makes FR4 particularly unique compared to other materials is its flame retardant properties. FR4 is treated with brominated compounds that give it the ability to resist fire, a key feature in electronics that may be exposed to high temperatures or electrical faults. This is especially important in consumer electronics, where overheating can pose a fire hazard.
By meeting the UL 94V-0 flame retardancy standard, FR4 ensures that even if the material is exposed to flames, it will self-extinguish within 10 seconds, without dripping flaming material. This property significantly reduces the risk of fires in electronic devices, making FR4 a critical safety component in PCBs used in high-risk environments, such as automotive electronics, industrial control systems, and medical equipment.
Stability and Performance in High-Temperature Applications
FR4 is not only resistant to fire, but it also maintains its mechanical and electrical integrity at high temperatures. This makes it ideal for use in high-temperature insulation within electronic components that are subject to significant heat generation, such as power supplies and industrial machinery. The thermal stability of FR4 allows it to perform reliably in conditions where lesser materials would fail, ensuring that PCBs maintain their structural integrity even under demanding conditions.
The combination of high-temperature resistance and fire safety makes FR4 the perfect material for PCBs in environments where both high performance and safety are critical. This is why FR4 is often found in industries such as automotive, aerospace, and telecommunications, where failure is not an option.
Long-Lasting Durability in Electronics
Another factor that contributes to the widespread use of FR4 in PCBs is its durability over time. In addition to its flame retardancy and electrical insulation, FR4 is highly resistant to moisture and chemicals, ensuring that it does not degrade or lose its properties in harsh environments. This makes FR4-based PCBs particularly suitable for outdoor electronics, industrial equipment, and marine applications, where exposure to the elements can otherwise damage sensitive components.
The moisture resistance of FR4 prevents electrical failure due to condensation or humidity, which is crucial in applications where environmental conditions can fluctuate. Additionally, FR4's resistance to chemical exposure ensures that PCBs remain functional even in harsh industrial environments, where they might come into contact with corrosive substances.
The Role of FR4 in Modern Electronics
With its combination of electrical insulation, flame retardancy, high-temperature resistance, and moisture protection, FR4 is essential for ensuring both the safety and performance of modern electronics. Its widespread use in PCBs across a wide range of industries highlights its importance in creating reliable, long-lasting devices.
From consumer gadgets to critical industrial machinery, FR4 ensures that electronic components can perform optimally while minimizing the risk of electrical failures or fires. Its role in safeguarding electronics makes it one of the most crucial materials in the world of printed circuit boards.
Thermal Stability and Moisture Resistance in FR4 vs G10
FR4 and G10 are both well-known glass epoxy laminates, widely used across various industries due to their mechanical strength, electrical insulation, and resistance to environmental stress. However, when it comes to comparing their thermal stability and moisture resistance, each material offers distinct advantages depending on the specific application. Let’s dive into these two crucial properties and how they affect the suitability of FR4 and G10 in different industrial settings.
Thermal Stability: FR4 vs G10
FR4 is highly valued for its thermal stability, particularly in high-temperature environments. This material can withstand continuous exposure to temperatures up to 140°C (284°F) without losing its structural integrity. The inclusion of a brominated flame retardant not only makes FR4 fire-resistant but also enhances its performance in high-temperature applications. This makes FR4 an ideal choice for printed circuit boards (PCBs), power supplies, and industrial equipment where heat dissipation is a concern. Its UL 94V-0 rating further solidifies its reputation as a reliable material for use in electronics, where overheating can be a significant risk.
On the other hand, G10 also exhibits impressive thermal stability, but it is generally rated for slightly lower maximum temperatures than FR4. G10 can handle temperatures of up to 130°C (266°F), making it suitable for many aerospace, marine, and mechanical applications. While G10 lacks the flame retardancy of FR4, it excels in environments where high mechanical strength and dimensional stability at elevated temperatures are critical. For example, G10 is often chosen for use in insulators, structural components, and mechanical supports in industries where flame resistance is not the primary concern.
Moisture Resistance: FR4 vs G10
When it comes to moisture resistance, both FR4 and G10 perform exceptionally well, but there are some key differences in their applications based on this property. FR4 has a water absorption rate of approximately 0.10%, which makes it a preferred choice in electronic applications, particularly in high-humidity environments. Its resistance to moisture ensures that FR4-based PCBs can operate reliably in conditions where condensation or exposure to water vapor might otherwise cause short circuits or degrade performance.
G10, on the other hand, offers even better moisture resistance, with a water absorption rate slightly lower than that of FR4. This superior performance in wet environments makes G10 the go-to material for marine applications, where constant exposure to water, salt, and humidity are common. Whether used in boat hulls, submersible parts, or underwater electrical components, G10 ensures long-lasting durability and dimensional stability despite prolonged contact with moisture.
Suitability in Industrial Applications
Given their distinct properties, FR4 and G10 find their place in different industrial applications based on their specific thermal and moisture performance. FR4 is best suited for electronic applications where flame retardancy and high-temperature insulation are critical. It is extensively used in PCBs, transformers, and high-voltage equipment, where the ability to resist both heat and moisture is essential to maintaining performance and safety.
In contrast, G10 shines in marine, aerospace, and mechanical applications, where high strength, moisture resistance, and stability under stress are more important than flame resistance. Its ability to resist water absorption makes it the material of choice for marine insulation, while its strength and thermal stability ensure reliable performance in aircraft and high-stress mechanical environments.
CNC Machining Capabilities
Both FR4 and G10 can be precisely machined through CNC machining, allowing them to be fabricated into complex parts for specific industrial uses. However, when flame retardancy is not needed, CNC machining of G10 is often preferred for creating durable, custom mechanical components in applications that require moisture resistance and thermal stability.
This comparison of FR4 and G10 shows that while both materials share many similar qualities, their thermal stability and moisture resistance make them uniquely suited for different industrial challenges.
CNC Machining of G10 and FR4: Precision and Versatility
Both G10 and FR4 are highly machinable materials, which makes them ideal for CNC machining. This process allows for the creation of precise, custom-manufactured components for various industrial applications. While G10 and FR4 share many characteristics, their CNC machining capabilities can be tailored to the specific requirements of different industries, such as aerospace, electronics, and mechanical engineering.
Precision in CNC Machining G10
G10, with its exceptional mechanical strength and dimensional stability, is particularly well-suited for applications where tight tolerances and high precision are required. During the CNC machining process, G10 maintains its structure without warping or distorting, making it ideal for the production of high-stress components such as insulators, bushings, and mechanical parts in aerospace and industrial machinery.
CNC machining of G10 involves cutting the material into complex shapes, while maintaining the integrity of its glass fiber-reinforced epoxy laminate structure. This allows manufacturers to produce parts that can withstand high mechanical loads and extreme environmental conditions, including temperature variations and moisture exposure. G10’s moisture resistance makes it a perfect choice for marine and outdoor applications, where components may be exposed to water or humidity.
Customization and Flexibility in CNC Machining FR4
FR4 is similarly well-suited for CNC machining, offering the ability to create custom components for electronic applications, particularly printed circuit boards (PCBs). One of the key advantages of FR4 in CNC machining is its ability to retain its flame retardant properties throughout the machining process. This makes FR4 the preferred material for high-temperature insulation and electrical insulation components in electronics and power systems.
CNC machining of FR4 allows for the production of complex PCB designs that are essential for modern electronics, from consumer gadgets to industrial automation systems. The precision of CNC technology ensures that FR4 can be fabricated into the exact shapes and dimensions needed for electronic enclosures, transformers, and insulators.
CNC Machining Techniques for G10 and FR4
The CNC machining process for both G10 and FR4 requires specialized tools and techniques to handle the fiberglass reinforcement within these materials. Carbide tooling is commonly used to cut through the epoxy resin matrix without damaging the structural integrity of the material. Precision in this process is critical to avoid delamination or chipping of the fibers, which could affect the performance of the final product.
Both materials are also compatible with various CNC machining operations, including milling, drilling, and turning, allowing manufacturers to create parts with complex geometries and fine details. This makes G10 and FR4 highly versatile for industries that require custom-engineered components with high-performance characteristics.
Applications of Custom-Machined G10 and FR4 Components
The ability to custom-machine G10 and FR4 into specific shapes opens the door to a wide range of industrial applications. For G10, custom components such as structural supports, spacers, and insulating washers are commonly used in aerospace and automotive systems, where strength and durability are paramount.
In the case of FR4, CNC machined PCBs are essential in the electronics industry. From smartphones and computers to telecommunication devices and industrial control systems, FR4 serves as the backbone for electronic insulation and flame retardancy, ensuring both safety and performance in high-risk environments.
Both G10 and FR4 can be machined to meet precise industry standards, making them essential in sectors that demand precision-engineered solutions.
The Role of CNC in Industrial Laminate Manufacturing
CNC machining offers unmatched precision and customization, which is vital in producing components from G10 and FR4 for specialized uses. Whether it’s for aerospace, marine, or electronics, the ability to produce custom-manufactured parts from these materials ensures that industries can rely on components that meet exact specifications and perform under extreme conditions.
By using CNC technology, manufacturers can unlock the full potential of G10 and FR4, creating components that are not only strong and reliable but also tailored to the unique needs of various industries.
Looking for premium FR4 or G10 fiberglass epoxy sheets for your next application? Fill out the contact form below to connect with our team or explore our extensive product range and discover the benefits of CNC machining solutions for precision-engineered components.
Frequently Asked Questions About FR4 and G10 Customization at BeePlastics
Here’s a list of the most common questions and answers that will help you understand BeePlastics’ customization services, especially when it comes to FR4 and G10 epoxy fiberglass materials.
1. Can BeePlastics handle both sample and batch customization?
Yes! At BeePlastics, we offer full customization services for both samples and batch production. Whether you need a one-off custom prototype or a large-scale order, we can tailor the manufacturing process to meet your exact specifications.
2. What file formats does BeePlastics accept for custom orders?
We accept a wide range of file formats to ensure your design specifications are met with precision. These include PDF, CAD (Computer-Aided Design), and other industry-standard file types. Just upload your preferred format, and we'll handle the rest.
3. Is there a minimum order quantity (MOQ) for customizations?
No, we have no minimum order quantity (MOQ). Whether you need a single custom part or a full production run, we can accommodate your request.
4. How does the production cycle work at BeePlastics?
The production cycle at BeePlastics is highly flexible and depends on both the order volume and the complexity of the customization. We will also communicate the production progress in real-time to keep you updated throughout the process.
5. Does BeePlastics provide free samples?
Yes, we offer free samples for custom orders. The only cost you will need to cover is the shipping fee, but the sample itself is complimentary.
6. What materials does BeePlastics specialize in for custom projects?
We specialize in high-performance materials such as FR4, G10 epoxy fiberglass, polymer composites, and other industrial laminates. These materials are ideal for high-strength and high-temperature applications, particularly in electronics and aerospace industries.
7. Can I modify my custom order after it has been placed?
Yes, but changes depend on the stage of the production process. We strive to offer flexibility, so if modifications are needed, it's best to reach out to us as soon as possible, and we’ll work with you to implement the changes.
8. What industries does BeePlastics serve with its customization services?
Our custom fabrication services are used by a wide range of industries, including electronics, automotive, aerospace, industrial machinery, and marine applications. We create customized components that meet industry-specific standards for performance and safety.
9. How precise can BeePlastics get with CNC machining for custom orders?
Our advanced CNC machining capabilities allow us to fabricate custom parts with extremely high precision. We work with tolerances as low as ±0.001 inches, ensuring that each part is manufactured to your exact specifications.
10. How do I get started with a custom order at BeePlastics?
Getting started is simple! Fill out the contact form on our website, upload your design files (PDF, CAD, etc.), and specify your requirements. Our team will get in touch with you to finalize the details and provide an estimate.
🎉🎉🎉Limited Time Offer Use code: QR4GNY08SHVR at checkout and enjoy a special discount on your entire order! 👉 FR4 fiberglass plastic
🎉🎉🎉Limited Time Offer Use code: QR4GNY08SHVR at checkout and enjoy a special discount on your entire order! 👉 FR4 fiberglass plastic
To wrap up, understanding the differences between G10 and FR4 is crucial for making informed decisions in both industrial and electronic applications. While G10 excels in environments where mechanical strength and moisture resistance are essential, FR4’s flame retardant properties and electrical insulation make it indispensable for high-temperature and fire-sensitive electronics, such as printed circuit boards. With the right material choice, and leveraging the CNC machining capabilities offered by BeePlastics, you can ensure that your components meet the exacting demands of your project, whether it's in aerospace, automotive, or electronics. To explore our custom fabrication services or to get started on your next project, visit our FR4 and G10 epoxy fiberglass sheets collection or connect with our CNC machining center for tailored solutions.
