G10 vs FR4: Key Differences in Mechanical Strength and Flame Resistance
Exploring the Mechanical Prowess of G10 in Demanding Industries
G10 is a high-pressure fiberglass laminate, a type of composite material made from epoxy resin reinforced with woven fiberglass cloth. Its exceptional mechanical strength and durability make G10 an ideal material for applications in aerospace and structural engineering. This material is not only noted for its robustness but also for its outstanding electrical insulation capabilities, making it suitable for a variety of industrial applications.
In aerospace, G10 is frequently employed in the manufacture of interior and exterior aircraft components due to its high strength-to-weight ratio. This quality is critical in applications where every kilogram matters, such as in the construction of airframes and aerospace instrumentation panels. Additionally, G10's resistance to water absorption and ability to withstand harsh environmental conditions make it an excellent choice for marine applications, where materials must endure constant exposure to moisture and varying temperatures.
FR4: The Preferred Choice for Electrical Insulation and Fire Safety
On the other side of the spectrum, FR4 stands out primarily for its flame retardant properties, making it a staple material in the electronics industry, especially for printed circuit boards (PCBs). FR4's composition includes a brominated epoxy resin that provides inherent flame resistance, ensuring that it meets the UL 94V-0 standard for safety. This is particularly important in consumer electronics and other applications where electrical safety is paramount.
FR4's thermal stability and excellent dielectric properties also make it ideal for use in electrical insulators, switchgears, and barrier materials in electrical applications where high heat resistance is required. Its ability to maintain structural integrity and insulation capabilities at high temperatures helps prevent system failures, which is crucial in high-stakes environments such as power generation plants and industrial electronics.
Material Selection: G10 vs FR4
Choosing between G10 and FR4 depends significantly on the specific needs of the application. For environments that demand high mechanical strength and durability without the need for flame retardancy, G10 is the optimal choice. Its superior performance in harsh environments makes it suitable for everything from sporting goods to military applications.
Conversely, in settings where electrical safety and fire resistance are critical, FR4 is the go-to material. Its flame retardant properties are essential for compliance with safety regulations in consumer electronics and automotive industries, among others.
CNC Machining and Custom Applications

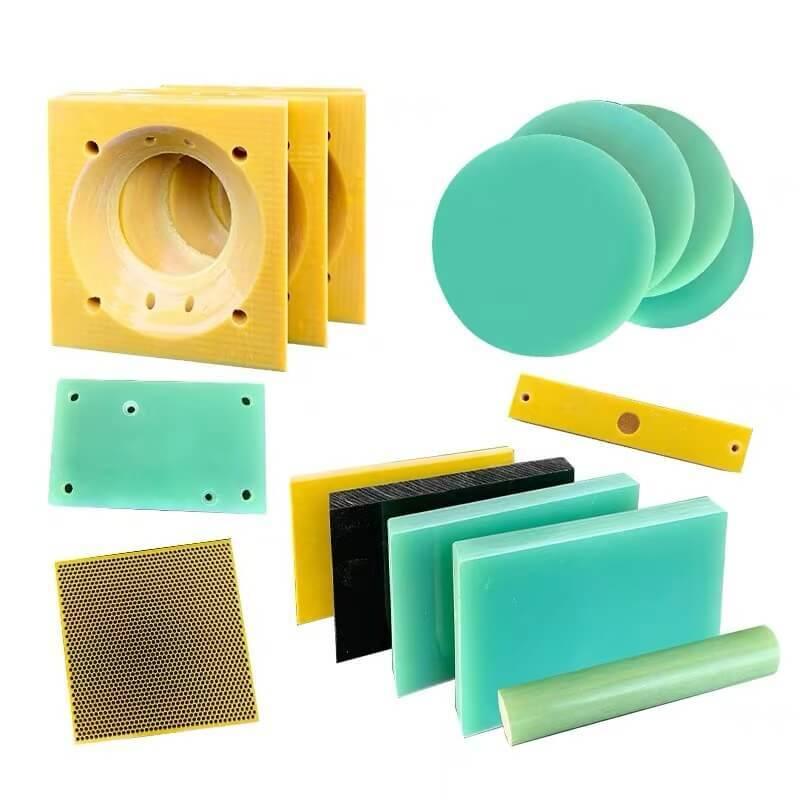

Both G10 and FR4 can be precisely shaped and tailored through CNC machining, offering versatility for custom designs. This process allows for the production of complex parts with tight tolerances and is particularly beneficial for creating intricate components found in electronic devices and durable goods.
The decision between using G10 and FR4 should be informed by a thorough understanding of the materials' properties and the environmental demands of the application. Whether you are dealing with high-impact sports equipment or sensitive electronic components, the choice of material can significantly influence the performance and safety of the final product.
By carefully considering the unique attributes of G10 and FR4, designers and engineers can effectively harness these materials to enhance the durability, safety, and efficiency of their projects. This guide aims to provide you with the knowledge needed to make an informed decision on the best material for your specific applications, ensuring optimal performance and compliance with industry standards.
Applications of G10 and FR4 in Electronics and Industrial Settings
G10 in Mechanical and Aerospace Fields
G10 is widely recognized for its exceptional mechanical strength and durability, making it indispensable in various aerospace and mechanical applications. This glass epoxy laminate offers a high strength-to-weight ratio, which is crucial for aircraft components where weight reduction directly impacts fuel efficiency and performance. In aerospace engineering, G10 is commonly used for interior structural panels, instrument housings, and support brackets, where mechanical resilience is needed without compromising weight or performance.
Additionally, G10's resistance to corrosion and low moisture absorption make it an ideal material for use in marine and industrial settings. Its ability to perform reliably in humid and wet environments ensures its longevity and functionality, even under harsh conditions. As a result, G10 is frequently used in applications such as marine equipment, heavy-duty gears, and industrial jigs, where both mechanical strength and environmental resistance are paramount.
FR4 in Electronics and Electrical Insulation
On the other hand, FR4 has solidified its position as the material of choice in electrical insulation and electronic components, especially in the manufacturing of printed circuit boards (PCBs). The addition of brominated compounds to FR4's epoxy matrix gives it flame retardant properties, making it highly suitable for environments where fire safety is critical, such as in consumer electronics, automotive control systems, and telecommunications equipment.
FR4’s thermal stability and excellent dielectric properties make it perfect for insulating high-voltage components, preventing electrical arcing and ensuring the safe and efficient operation of electrical devices. The material's low water absorption also enhances its insulation capabilities, as moisture can otherwise degrade electrical performance and increase the risk of failure.
Comparison of G10 and FR4 in Industrial Applications
The key difference between G10 and FR4 lies in the latter's flame retardant characteristics, which make FR4 ideal for electronic applications where both heat resistance and electrical insulation are crucial. For example, in PCBs, FR4 not only provides structural support but also helps prevent electrical fires by self-extinguishing when exposed to flames. In contrast, G10 excels in environments where mechanical durability is prioritized over flame resistance, such as in heavy machinery and automotive components.
Another distinguishing factor is the use of FR4 in electrical enclosures and transformer insulation, where its high dielectric strength and low conductivity make it an optimal choice for creating safe, high-performance electrical systems. Meanwhile, G10 is more commonly used in structural frames, motor housings, and supporting fixtures in industrial machines, offering the necessary mechanical strength without the need for flame retardancy.
By understanding the specific advantages of G10 and FR4 in their respective fields, designers and engineers can select the most appropriate material to ensure optimal performance, longevity, and safety in their applications. Whether you're working in the electronics industry or dealing with aerospace engineering, choosing between G10 and FR4 requires a clear understanding of their unique properties.
Why Flame Retardant FR4 Is Crucial for Printed Circuit Boards
The Role of Flame Retardant FR4 in Fire Safety
FR4 is the industry standard for printed circuit boards (PCBs) due to its flame retardant properties, which are crucial for ensuring the safety and durability of electronic devices. What sets FR4 apart from other materials is its UL 94V-0 rating, meaning it is self-extinguishing when exposed to flames. This property plays a vital role in preventing fires caused by electrical faults or overheating in consumer electronics, automotive electronics, and industrial control systems.
The UL 94V-0 rating specifically requires that the material extinguishes itself within 10 seconds after being exposed to a flame, without dripping or igniting nearby materials. This level of fire resistance is not just desirable—it’s mandatory for many electronic devices, especially those that need to comply with stringent safety regulations in industries such as telecommunications and automotive. Without the flame-retardant properties of FR4, the risk of electrical fires significantly increases, particularly in applications where high voltage and thermal stress are common.
FR4’s Importance in High-Temperature Environments
Thermal stability is another key characteristic that makes FR4 indispensable in PCBs. In many electronic devices, components can reach high temperatures during operation, especially in power supplies, switchgear, and signal amplifiers. FR4 maintains its integrity and dielectric strength even at elevated temperatures, ensuring that electrical insulation is not compromised under thermal stress.
This ability to resist heat while maintaining electrical insulation properties ensures that PCBs made from FR4 can function reliably in challenging environments. In industries like aerospace, automotive, and telecommunications, where equipment often operates in high-temperature and high-power conditions, the thermal stability of FR4 prevents malfunction or material degradation, which could otherwise lead to catastrophic failures.
Why FR4 Is Essential for Printed Circuit Boards
When it comes to PCBs, FR4 is the preferred material due to its flame resistance, mechanical strength, and excellent electrical insulation. These boards often have multiple layers of electrical connections and components that generate heat, making them susceptible to overheating and potential fire hazards. FR4's flame-retardant epoxy laminate acts as a barrier, slowing down the spread of fire and providing the necessary thermal stability to protect the circuitry.
Moreover, FR4 helps ensure compliance with industry safety standards. For example, in consumer electronics like smartphones and laptops, where PCB density is high, heat dissipation and fire prevention are essential. FR4 meets these challenges by providing a material that not only resists combustion but also supports the smooth operation of the electronic components embedded within it.
The Critical Need for Flame Retardancy in Electronics
Beyond PCBs, FR4 is used in many other electronic components where thermal management and fire safety are critical. In high-power applications like data centers, servers, and telecom systems, FR4’s ability to handle high temperatures without igniting is crucial. Its use extends to transformers, switchgears, and power distribution systems, where its fire-resistant qualities provide both protection and reliability in managing high-current and high-voltage loads.
The flame-resistant properties of FR4 also allow manufacturers to integrate CNC machining processes for custom PCB layouts, ensuring that they can produce intricate designs without sacrificing safety or functionality. These benefits make FR4 a cornerstone material in the ever-expanding world of electronics.
CNC Machining G10 vs FR4: How to Get the Perfect Cut
Understanding the Machinability of G10 and FR4
Both G10 and FR4 are glass epoxy laminates, which present unique challenges when it comes to CNC machining. These materials are widely used in industries such as aerospace, electronics, and mechanical applications due to their high mechanical strength, dimensional stability, and electrical insulation properties. However, their fiberglass reinforcement makes them difficult to machine, as the epoxy resin can be abrasive and lead to tool wear, while the glass fibers can cause delamination or warping if not handled properly.
While G10 and FR4 share many similarities, there are key differences in how they should be approached during CNC machining. These differences arise primarily due to FR4’s flame retardant properties, which require different handling techniques compared to G10.
CNC Machining Techniques for G10: Precision and Durability
G10 is known for its mechanical strength and durability, but these very characteristics make it challenging to machine. The material tends to be abrasive, which means that cutting tools can wear down quickly if they’re not suited for the task. To achieve a clean, precise cut on G10, it’s essential to use tools made from materials like carbide or diamond-coated tools that are more resistant to wear.
During CNC machining of G10, it's important to monitor tool speeds and feeds carefully. If the tool moves too quickly, it can generate excess heat, leading to material warping or surface degradation. Using coolant or air blasts during the machining process helps to reduce the heat buildup, ensuring the material retains its structural integrity. Additionally, multi-axis CNC machines provide more control over complex geometries, allowing for high-precision cuts with minimal stress on the material.
CNC Machining FR4: Handling Flame Retardant Laminates
Machining FR4 presents additional challenges due to its flame retardant properties. The brominated epoxy resin used in FR4 can be more prone to cracking and chipping compared to G10, especially if the material is not properly supported during the cutting process. To avoid these issues, it’s essential to reduce tool feed rates and ensure that the machining tools are sharp and in excellent condition.
One of the biggest risks when machining FR4 is the potential for delamination. The presence of flame retardant additives makes FR4 more brittle, so care must be taken to prevent layers of the material from separating during the cutting process. Using down-cutting techniques or compression bits can help prevent delamination by applying even pressure on both sides of the laminate, keeping it intact while cutting.
To avoid excessive tool wear from the abrasive nature of the glass fibers, diamond-coated cutting tools or solid carbide tools are recommended. These tools are highly durable and maintain their sharpness, allowing for smoother cuts on FR4 without causing material damage. Also, as with G10, using coolants or air blowers during machining helps to minimize heat buildup, which can compromise the material’s flame retardant properties.
Common Pitfalls and How to Avoid Them
Both G10 and FR4 require careful planning and attention to detail during the CNC machining process. One common issue when working with these materials is tool wear, which can affect the accuracy of cuts and cause surface damage. Regularly inspecting and replacing tools is critical to maintaining the quality of the machined parts.
Another common challenge is material warping due to heat buildup during the machining process. To counter this, I recommend using lower spindle speeds and ensuring that coolants or air blasts are consistently applied throughout the machining process. This reduces the risk of thermal damage and helps the material maintain its shape.
Choosing the Right Tools for the Job
For both G10 and FR4, it’s important to select the right cutting tools and machining techniques to achieve optimal results. Diamond-coated and solid carbide tools offer the durability needed to handle the abrasive glass fibers in these materials. Additionally, utilizing multi-axis CNC machines ensures greater precision when cutting complex parts.
Ultimately, achieving the perfect cut on G10 and FR4 requires careful consideration of tool selection, cutting speeds, and temperature control. By using the right tools and techniques, it’s possible to machine these fiberglass epoxy laminates with high precision and minimal material waste, ensuring that the final products meet the demanding requirements of industries such as aerospace, electronics, and industrial manufacturing.
Electrical Insulation Laminates: G10 and FR4 in High-Voltage Applications
The Importance of Electrical Insulation in High-Voltage Applications
When dealing with high-voltage applications, materials with excellent electrical insulation properties are crucial to ensure safety and operational efficiency. Both G10 and FR4 are highly regarded for their ability to withstand high voltages, making them essential in industries such as power generation, telecommunications, and heavy industrial equipment. These glass epoxy laminates offer a combination of mechanical strength and insulation properties, which make them ideal for components like transformers, switchgear, and high-voltage insulators.
G10: A Reliable Material for Mechanical and Electrical Insulation
G10 is known for its high dielectric strength, which ensures its performance as an effective electrical insulator. This property makes G10 a go-to material in transformers and motor housings, where maintaining separation between high-voltage components is critical to preventing electrical arcing. G10’s low water absorption further enhances its insulating properties, as moisture can often degrade electrical performance and increase the risk of system failures.
Another advantage of G10 in high-voltage applications is its mechanical robustness. The material’s ability to retain its structural integrity under both mechanical stress and electrical load makes it ideal for use in switchgear, where components must endure both high voltage and physical wear. Its thermal stability also ensures that it can operate effectively at high temperatures, providing reliable performance in power systems.
FR4: The Flame-Retardant Insulator for Electrical Systems
While G10 offers excellent insulation and mechanical strength, FR4 adds an essential layer of flame retardancy, which is often required in electrical systems. In high-voltage transformers, FR4’s flame retardant properties are indispensable in preventing the spread of fire in the event of electrical malfunction or overload. This is particularly critical in industrial settings where electrical fires can cause significant damage to equipment and infrastructure.
FR4 also boasts impressive dielectric properties, making it a popular choice in high-voltage circuit breakers, electrical panels, and protective insulation layers. Its ability to withstand voltage spikes and prevent electrical breakdown ensures that it remains stable under extreme electrical loads. Additionally, FR4's compliance with the UL 94V-0 standard ensures that it is safe to use in environments where fire resistance is paramount, further enhancing its utility in high-voltage electrical systems.
Applications of G10 and FR4 in Transformers and Switchgear
In the field of transformers, both G10 and FR4 are used extensively due to their ability to isolate high-voltage components. G10 is typically used for coil forms, barriers, and insulating supports that require high mechanical strength and electrical insulation. FR4, with its added flame-retardant properties, is often employed in the core insulation of transformers, where thermal management and fire prevention are critical.
Switchgear—the components that control and protect electrical systems—relies heavily on both G10 and FR4 for insulation and arc suppression. These materials are used in bus bar supports, arc barriers, and insulation plates to ensure that high-voltage circuits are properly isolated, thus preventing electrical faults and arc flash incidents.
Dielectric Strength and Thermal Stability: The Key to High-Voltage Insulation
Both G10 and FR4 exhibit high dielectric strength, meaning they can withstand large electrical fields without breaking down. For high-voltage applications, this characteristic is non-negotiable, as even a minor dielectric failure can result in catastrophic electrical short circuits. The thermal stability of these materials ensures that they continue to perform even under the heat generated by high electrical loads, preventing thermal breakdown or material deformation.
By combining mechanical strength, thermal resilience, and dielectric insulation, both G10 and FR4 serve as the backbone of high-voltage electrical systems, providing safety, reliability, and efficiency in some of the most demanding industrial environments.
Moisture Resistance and Thermal Stability: How G10 and FR4 Hold Up in Extreme Environments
The Importance of Moisture Resistance in Extreme Conditions
When materials are used in extreme environments, such as marine and industrial applications, their ability to resist moisture is critical. Both G10 and FR4 excel in moisture resistance, making them ideal for situations where high humidity or direct exposure to water is a concern. These glass epoxy laminates exhibit extremely low water absorption, allowing them to maintain their structural integrity and electrical insulation properties even when exposed to wet or humid environments.
G10, in particular, is widely used in marine applications such as boat components, underwater equipment, and even offshore structures due to its excellent water resistance. It retains its mechanical strength and dimensional stability, preventing warping, swelling, or degradation when submerged or exposed to constant moisture. FR4, while slightly more focused on electrical insulation, also boasts strong moisture resistance, making it useful in industrial electrical enclosures and outdoor switchgear, where the environment is frequently damp.
Thermal Stability: Withstanding High Temperatures in Industrial Applications
Thermal stability is another critical factor that makes G10 and FR4 the go-to materials in extreme environments. G10 is known for maintaining its mechanical properties under high temperatures, which is essential for industrial machinery and heavy-duty equipment. Its ability to resist deformation or structural breakdown in high-heat situations makes it ideal for components in motor housings, bearings, and heat shields.
On the other hand, FR4 not only offers thermal stability but also has the added benefit of being flame retardant, meeting the UL 94V-0 standard. This makes FR4 indispensable in electronic components, particularly printed circuit boards (PCBs), which often operate in high-heat conditions. FR4’s ability to maintain its insulating properties under these circumstances ensures that electronics remain safe and functional, even when exposed to prolonged heat.
Applications of G10 and FR4 in Marine and Outdoor Settings
Due to their low moisture absorption and high thermal resistance, both G10 and FR4 are widely used in outdoor applications. In marine environments, G10 is often found in marine-grade components like structural parts of boats, underwater pipelines, and even navigational equipment. Its resistance to saltwater corrosion further enhances its performance, ensuring long-term durability and reducing the need for frequent maintenance or replacement.
FR4, although more specialized for electronics, is frequently used in outdoor switchgear, transformers, and electrical panels that are exposed to fluctuating temperatures and moisture. Its combination of flame retardancy and thermal stability ensures that these systems can function efficiently without the risk of electrical failures or fire hazards, even in high-humidity environments.
Performance in Industrial and High-Temperature Environments
In industrial settings, both G10 and FR4 have demonstrated superior performance in environments where high heat and moisture are constant challenges. G10 is often used for mechanical support structures and insulating barriers in heavy-duty machinery due to its ability to endure high temperatures without losing strength. FR4, favored in the electronics industry, can withstand both thermal stress and humidity, making it indispensable in high-voltage transformers and industrial control systems.
The thermal stability of FR4 ensures that even in high-temperature equipment, the material maintains its electrical insulation properties, preventing short circuits and ensuring the safe operation of electrical systems. G10, while non-flame retardant, is known for its resilience in extreme heat, which is why it’s used in high-impact applications where mechanical durability is a priority.
How Low Water Absorption and Thermal Stability Make G10 and FR4 Versatile
The combination of low water absorption and thermal stability ensures that both G10 and FR4 perform reliably in extreme conditions, including outdoor, marine, and industrial environments. These properties make them versatile materials for applications ranging from electronics and machinery to marine infrastructure and heavy equipment, providing durability, safety, and efficiency across a range of industries.
By excelling in both thermal resistance and moisture protection, G10 and FR4 remain some of the most widely used materials in demanding industrial applications, ensuring that equipment and structures withstand the harshest conditions while maintaining performance and reliability.
