Introduction to Electrical Insulation Materials
Selecting the right insulation material for electrical applications is essential for ensuring safety, reliability, and performance. Insulation materials are critical for protecting electrical components, preventing short circuits, and ensuring that electrical systems operate at peak efficiency. With a variety of insulation options available, understanding the unique properties of each material is key to making an informed decision.
🎉🎉🎉Limited Time Offer Use code: QR4GNY08SHVR at checkout and enjoy a special discount on your entire order! 👉 FR4 fiberglass plastic
Among the most widely used materials for electrical insulation, Kapton and G10 are considered top choices. These two materials are known for their exceptional electrical insulating properties, making them suitable for a wide range of industries, from electronics to industrial manufacturing.
The Importance of Electrical Insulation in Different Industries
Electrical insulation plays a crucial role in several industries, from electronics to telecommunications and industrial manufacturing. The purpose of insulation materials is to isolate electrical components, preventing leakage and protecting sensitive circuits from electrical faults or damage. Whether you’re working with high-voltage systems, high-performance electronics, or manufacturing equipment, the insulation material you choose can affect both the safety and efficiency of the system.
For industries like electronics, where systems require precise control and stability, selecting the right insulation material is vital. In industrial manufacturing, insulation materials such as G10 and Kapton are often used to protect high-voltage components and ensure the long-term performance of machinery.
What is Kapton? Why Is It Popular in Electrical Insulation?
Kapton is a polyimide film that is renowned for its thermal stability and electrical insulating properties. It can withstand extreme temperatures, ranging from -269°C to +400°C, making it a popular choice for high-performance applications. Kapton is not only flexible but also has a high dielectric strength, which makes it ideal for use in electronics, telecommunications, and even aerospace industries.
This material is highly valued for its chemical resistance and ability to function in both high-temperature and low-temperature environments, making it a versatile option in various high-demand applications, including electrical cables, circuit boards, and flexible electronics.
What is G10? A Durable Solution for Electrical Insulation
In contrast, G10 is a fiberglass-reinforced epoxy laminate that combines fiberglass with an epoxy resin to create a material known for its mechanical strength and electrical insulation capabilities. Often referred to as Garolite G10, this material is extremely durable, offering high resistance to electrical current and thermal stability.
G10 is primarily used in situations where both electrical insulation and structural integrity are needed. It's commonly employed in power distribution systems, switchgear, and circuit boards, offering an excellent balance between strength and insulating properties. Due to its robust construction, G10 material sheets are used in high-voltage environments where other materials might be less effective.
Choosing the Right Insulation Material: Kapton vs. G10
Both Kapton and G10 excel in their ability to insulate electrical components, but each material offers distinct advantages depending on the application.
-
Kapton: Ideal for environments that require extreme temperature resistance and flexibility. It's perfect for applications where high dielectric strength is crucial, such as high-voltage electronics and aerospace.
-
G10: Known for its mechanical strength and durability, G10 is best suited for industrial applications and heavy-duty machinery where structural integrity is just as important as electrical insulation.
Understanding the specific requirements of your electrical system is essential when selecting the right material. Consider factors such as voltage, temperature conditions, and mechanical stress to determine whether Kapton or G10 is the better choice for your needs.
What is Kapton?
Kapton is a high-performance polyimide film known for its exceptional thermal stability and electrical insulation properties. Originally developed by DuPont in the early 1960s, Kapton has since become one of the most versatile materials for use in extreme environments. Its remarkable ability to resist both high and low temperatures makes it invaluable for applications that require stability and durability in challenging conditions.
Chemical Composition and Structure of Kapton
The primary base material in Kapton is polyimide, a type of polymer known for its resistance to extreme temperatures and its strong insulating properties. Polyimide films like Kapton are typically made by combining imide monomers with aromatic hydrocarbons, creating a structure that provides outstanding electrical insulation and thermal resistance. This makes Kapton material suitable for environments where other materials would degrade or fail, such as in high-voltage applications or electronics exposed to intense heat or chemicals.
One of the main reasons Kapton is so widely used is its superior dielectric strength, which ensures it can handle high voltages without compromising performance. It also retains its mechanical properties, even at extremely low temperatures, making it an ideal material for industries that require robust and reliable insulation.
Exceptional Temperature Resistance and Flexibility
One of the standout properties of Kapton is its temperature resistance. Kapton can operate effectively across a vast temperature range, from as low as -269°C (-452°F) to as high as 400°C (752°F), without losing its insulating properties. This remarkable thermal stability allows it to perform well in harsh environments, including those involving extreme heat, cold, or rapid temperature fluctuations.
In addition to its temperature resistance, Kapton is also known for its flexibility. This flexibility allows it to be used in a variety of configurations, such as thin films, flexible tapes, and coatings, which are commonly used in electronic devices, printed circuit boards, and even in aerospace applications. Its ability to bend without breaking or losing its insulating properties is a key feature that makes it a go-to choice in industries that demand versatility and reliability.
Electrical Insulation Properties of Kapton
As an electrical insulation material, Kapton excels in preventing the flow of electricity between components. This is essential in high-voltage systems, where proper insulation can prevent dangerous short circuits and ensure that electrical components function efficiently. Kapton's dielectric properties also make it useful in capacitors, insulating wires, and other electrical components that require high dielectric strength to maintain performance under load.
The unique combination of low dielectric constant and high dielectric strength makes Kapton an optimal material for electronics and telecommunications. It is widely used in applications such as flexible circuit boards, electrical cables, wire insulation, and electronic components that require efficient and long-lasting insulation.
Common Industries Using Kapton
Due to its outstanding properties, Kapton is used in a variety of industries where high-performance insulation is needed. Here are some common industries that benefit from Kapton's unique capabilities:
Aerospace Industry
In the aerospace industry, Kapton is used extensively for thermal insulation on spacecraft, satellites, and aircraft. Its ability to endure extreme temperatures—both hot and cold—makes it essential in spacecraft insulation and in protecting sensitive electrical components from harsh environments in outer space.
Electronics Industry
Kapton plays a vital role in the electronics industry, especially in flexible printed circuit boards (PCBs), electrical cables, and wire coatings. Its flexibility and dielectric strength make it ideal for modern, high-performance electronics such as smartphones, computers, LED lighting, and other consumer electronics.
Industrial Applications
In industrial applications, Kapton is used for insulating wires and electrical components in environments where durability and thermal resistance are critical. It is particularly useful in motors, transformers, and high-voltage equipment that require robust insulation under high-stress conditions.
Additionally, Kapton is found in automotive electronics, medical devices, and power distribution systems, where it provides effective electrical insulation while maintaining its structural integrity over time.
What is G10?
G10 is a high-performance material widely used for its electrical insulating properties and mechanical strength. It is primarily known as a fiberglass-reinforced epoxy laminate, which means it combines the lightweight, durable nature of fiberglass with the enhanced strength and electrical resistance of epoxy resin. This unique construction gives G10 material its superior ability to withstand both thermal stress and electrical current, making it an ideal choice for various industrial applications.
The Composition and Construction of G10 Material
G10 material is primarily composed of fiberglass layers that are bound together by an epoxy resin matrix. The fiberglass provides strength and rigidity, while the epoxy resin offers electrical insulation and resistance to harsh environments. This laminate construction ensures that G10 is not only durable and resilient but also highly effective at preventing the flow of electricity.
The G10 fiberglass sheets are manufactured by stacking multiple layers of fiberglass cloth, impregnated with epoxy resin, and then curing them under heat and pressure. This process creates a solid, compact, and uniform material with excellent dielectric properties. Once cured, G10 sheets can be cut, drilled, or machined into custom shapes and sizes, making them versatile for a wide range of uses.
The Electrical Insulation Properties of G10 Material
One of the main reasons G10 is so highly regarded is for its exceptional electrical insulation capabilities. As a fiberglass-reinforced laminate, G10 material can effectively isolate electrical components, preventing short circuits and protecting sensitive equipment. Its dielectric strength ensures that it can withstand high voltages without breaking down, making it an essential material for electrical systems that require reliable, long-lasting insulation.
Unlike many other materials, G10 maintains its electrical insulating properties even in harsh environments. It is resistant to moisture, chemicals, and extreme temperatures, which makes it ideal for use in both indoor and outdoor electrical applications.
Common Industries and Applications for G10 Material
Given its strength, resilience, and electrical insulation properties, G10 is used across a wide array of industries and applications. Some of the most common uses for G10 sheets include electrical enclosures, switchgear, and insulation boards.
Electrical Enclosures and Switchgear
In the electrical industry, G10 is often used for making electrical enclosures that house sensitive components like switches, fuses, and circuit breakers. The dielectric properties of G10 make it an excellent choice for switchgear components, as it can protect electrical circuits from short circuits, electrical arcing, and other malfunctions. Its ability to withstand high voltages makes it ideal for use in power distribution and high-voltage applications.
Insulation Boards and Electrical Components
Another common use for G10 material is in the manufacturing of insulation boards. These boards are widely used in transformers, motors, and electrical panels to ensure that electrical current does not travel where it’s not needed. The high dielectric strength of G10 helps prevent electrical interference and maintains the efficiency of the system.
Additionally, G10 fiberglass is used in the creation of insulating components for high-performance electronics. Its mechanical strength also makes it a popular choice for applications that require both electrical insulation and structural integrity.
Aerospace and Industrial Applications
G10 is also used in aerospace and industrial manufacturing, where durability and electrical safety are paramount. The material’s ability to withstand high temperatures and its resistance to chemicals make it ideal for use in aerospace applications, such as in the construction of electrical panels and circuit boards for spacecraft or aircraft.
In industrial applications, G10 material is used for insulating and reinforcing parts in heavy machinery, motors, pumps, and transformers. Its ability to withstand both mechanical stress and electrical overloads makes it indispensable in environments where reliability is crucial.
What is G10 Made of?
G10 is a fiberglass-reinforced epoxy laminate that combines the lightweight strength of fiberglass with the durability and electrical insulation properties of epoxy resin. The material is widely known for its exceptional mechanical strength, resistance to high temperatures, and ability to act as an excellent electrical insulator. Let’s take a closer look at the composition of G10, how it's made, and why it's such a valuable material in a wide range of industries.
The Layers of Fiberglass and Epoxy Resin in G10
At its core, G10 is made up of multiple layers of fiberglass cloth that are carefully saturated with epoxy resin. The process begins with sheets of fiberglass, which are woven into a fabric-like structure. This fiberglass provides the base strength and rigidity of the material, ensuring that G10 remains both tough and durable, even in demanding environments. The fiberglass layers are then impregnated with epoxy resin, which acts as the binding agent and provides additional electrical insulation and chemical resistance.
Once the fiberglass layers are coated with epoxy resin, they are stacked together and cured under high heat and pressure, creating a solid, dense material known as G10 fiberglass. This construction is what gives G10 its impressive mechanical strength, while also allowing it to remain relatively lightweight compared to other industrial materials. The result is a robust, versatile material that can withstand harsh conditions while maintaining excellent dielectric properties.
Durability, Lightweight Nature, and Electrical Insulation
The combination of fiberglass and epoxy resin makes G10 an extremely durable material, capable of withstanding mechanical stress, high temperatures, and electrical currents. G10 fiberglass has a high tensile strength, making it resistant to breaking or cracking under pressure. It also has good thermal stability, allowing it to endure temperatures from -50°C to 130°C (-58°F to 266°F) without losing its form or functionality.
In terms of electrical insulation, G10 material excels due to the high dielectric strength provided by its epoxy resin matrix. This makes it an ideal material for use in electrical components, high-voltage equipment, and electronics where reliable insulation is critical. It effectively prevents the flow of electricity between conductive parts, ensuring safety and optimal performance of electrical systems.
The lightweight nature of G10 makes it a preferred material in applications where weight is a concern, such as in electronics and aerospace. Despite its strength and durability, G10 remains much lighter than traditional metals or ceramics, giving it an edge in industries that demand both strength and lightweight performance.

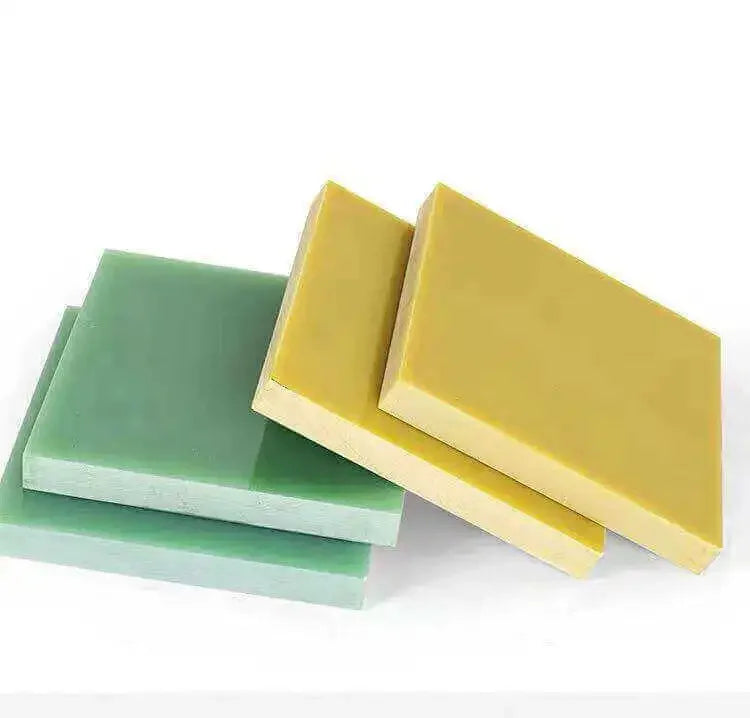

Common Forms of G10 Material
G10 is commonly available in several forms, making it adaptable for different applications. The most popular form is G10 sheets, which can be customized into various thicknesses and sizes depending on the specific needs of the project. These sheets are often used for electrical insulation boards, circuit boards, and electrical enclosures in industrial, automotive, and aerospace applications.
Another common form of G10 material is G10 fiberglass boards, which are often used in larger structural applications where a higher degree of strength and durability is required. These boards are also used in the production of insulation barriers in high-voltage electrical components such as transformers and electrical panels. Both G10 material sheets and fiberglass boards are highly versatile and can be easily fabricated to meet custom design specifications.
Additionally, Garolite G10, a specific variant of G10 material, is often used in electronics and military applications where additional strength and dimensional stability are necessary. Garolite G10 is known for its resistance to moisture and environmental factors, which makes it an excellent choice for use in harsh outdoor conditions or for critical electronic components that need to withstand extreme environments.
Kapton vs. G10: A Comparison of Key Properties
Choosing the right material for electrical insulation and other industrial applications is critical to the success of any project. Kapton and G10 are two widely used materials, each with its own unique properties and benefits. Understanding the key differences between Kapton and G10 can help determine which material is the best fit for specific applications. In this section, we’ll compare Kapton and G10 based on important properties such as thermal resistance, electrical insulation, mechanical strength, and cost.
Thermal Resistance: Kapton’s High-Temperature Resistance vs. G10’s Heat Tolerance
Kapton is renowned for its exceptional thermal stability, especially at high temperatures. This material can withstand continuous exposure to temperatures ranging from -269°C to 400°C (-452°F to 752°F) without losing its structural integrity. Kapton’s ability to maintain its properties under such extreme conditions makes it an ideal choice for aerospace and electronics applications where parts may be exposed to high heat over extended periods of time. Its high-temperature tolerance allows Kapton to function effectively in environments where other materials would degrade or fail.
In comparison, G10 has a more moderate heat tolerance, typically withstanding temperatures between -50°C to 130°C (-58°F to 266°F). While G10 offers solid thermal resistance, it does not match Kapton in terms of heat tolerance for extreme environments. However, for most industrial and electrical insulation needs, G10’s heat resistance is more than adequate, making it a popular choice for applications where high temperatures are not a primary concern.
Electrical Insulation: Effectiveness of Kapton and G10 in Insulating Electrical Components
Both Kapton and G10 excel in providing electrical insulation, but they do so in different ways and for different applications. Kapton offers superior dielectric properties, making it highly effective for use in high-voltage systems and electronics where minimal electrical interference is crucial. The material’s low dielectric constant and high dielectric strength allow it to effectively isolate electrical components, preventing short circuits and ensuring the safe operation of sensitive systems.
G10, on the other hand, is also an excellent electrical insulator, particularly in more industrial settings. It is commonly used in the production of insulation boards, circuit boards, and electrical enclosures. While it does not match Kapton’s electrical performance in extremely high-voltage applications, it still offers high dielectric strength and is highly effective in electrical systems that operate at lower voltage levels. G10’s superior mechanical strength and impact resistance further enhance its suitability for electrical insulation in tough environments.
Mechanical Strength: Flexibility, Strength, and Impact Resistance
When it comes to mechanical strength, G10 outperforms Kapton in several key areas. G10 is known for its exceptional impact resistance and flexural strength, making it ideal for applications that require a material to withstand physical stress and mechanical deformation. Its fiberglass reinforcement provides high tensile strength, allowing G10 to resist cracking, warping, and other forms of mechanical failure.
While Kapton is highly flexible and can withstand thermal expansion and compression in thin-film applications, it is more prone to tearing or breaking under high mechanical stress. This makes Kapton a better fit for aerospace and electronics applications where flexibility is key, but not necessarily a material that needs to withstand significant impact or physical pressure.
In contrast, G10 is the go-to material when strength and impact resistance are the primary concerns. Its rigid structure makes it ideal for use in electrical enclosures, circuit boards, and machine parts that will experience high levels of mechanical force.
Cost and Availability: How Pricing Affects Material Choice
The cost of Kapton and G10 can vary significantly depending on the application and form required. Kapton, being a specialized high-performance material, tends to be more expensive than G10. This higher cost is justified by its extreme thermal resistance and flexible applications in industries such as aerospace, electronics, and high-performance engineering. However, because of its price, Kapton is typically reserved for applications that require its unique high-temperature properties and excellent electrical insulation capabilities.
G10, on the other hand, is a more cost-effective option for general electrical insulation and mechanical applications. While it doesn’t have the same high-temperature resistance as Kapton, G10 offers a strong balance of thermal resistance, electrical insulation, and mechanical durability at a lower price point. As a result, G10 is often preferred for industrial applications, machine parts, and electrical components where extreme heat tolerance is not as critical.
Choosing the Right Material for Your Application
When deciding between Kapton and G10, it is important to consider the specific requirements of your project. If your application involves extreme temperatures or requires a flexible material with excellent dielectric properties, Kapton may be the better option. On the other hand, if you need a cost-effective, mechanically robust material for electrical insulation or industrial manufacturing, G10 is likely the preferred choice.
Each material has its own set of advantages depending on the demands of the project, and understanding these differences can help guide you to the right decision.
Applications in Electrical Insulation
Both Kapton and G10 are highly effective materials for electrical insulation, but their unique properties make them suited to different types of applications. From aerospace to industrial manufacturing, the versatility of these materials allows them to be used in a wide range of electrical insulation applications. In this section, we will explore how each material is utilized in real-world scenarios and the factors that influence the choice of material.
Kapton Applications in Extreme Temperature Environments
One of the primary advantages of Kapton is its ability to withstand extreme temperatures, making it an ideal material for high-voltage electronics and aerospace components. Kapton's high-temperature resistance allows it to operate in environments where other materials would fail, especially in aerospace where parts are often exposed to extreme heat fluctuations.
For example, Kapton is commonly used in spacecraft wiring and satellite components. The material’s thermal stability ensures that electrical components remain insulated even in the harshest environments, where temperatures can vary from sub-zero conditions in space to intense heat when re-entering the Earth's atmosphere. Kapton's ability to maintain its insulating properties over such a wide temperature range makes it indispensable for applications where failure could have catastrophic consequences.
In addition to aerospace, Kapton is used extensively in high-voltage electronics such as transformers and power distribution equipment. Its dielectric strength and ability to withstand high temperatures without degrading make it an excellent choice for applications in electrical insulation that demand both high performance and reliability.
G10 Applications in Electrical Insulation
While Kapton excels in high-temperature applications, G10 is a versatile material that performs well in many other types of electrical insulation applications. G10, made of fiberglass-reinforced epoxy laminate, is known for its mechanical strength, impact resistance, and high dielectric strength, making it perfect for applications in transformers, circuit boards, and electrical panels.
G10 in Transformers and Electrical Panels
G10's durability and electrical insulating properties make it a go-to material for transformers and electrical panels. Fiberglass sheets made from G10 are often used as insulation layers in transformer windings, ensuring that electrical currents do not short-circuit between windings or other components. The material's electrical insulation properties help to maintain safe operation in high-power systems, preventing equipment failure and improving system efficiency.
In electrical panels, G10 is used to provide reliable insulation between metal components. Its mechanical strength also ensures that it can withstand the physical stresses of electrical systems without cracking or deforming. G10 fiberglass sheets are frequently used in the construction of enclosures and electrical boxes, providing an insulating barrier that protects against electrical shocks and maintains safe operation of the equipment.
G10 in Circuit Boards
G10 is widely used in printed circuit boards (PCBs) due to its high dielectric strength and thermal stability. The material’s combination of fiberglass and epoxy resin allows for excellent electrical insulation while maintaining structural integrity. In electronics manufacturing, G10 is often used for high-performance PCBs in devices such as consumer electronics, medical equipment, and industrial machinery.
Since G10 is a reliable and cost-effective option for electrical insulation, it is a preferred material for applications where high-voltage isolation and thermal stability are important but extreme temperature resistance (like Kapton) is not necessary.
Factors Affecting the Choice of Material for Electrical Insulation
The decision to use Kapton or G10 often depends on the specific electrical, thermal, and mechanical requirements of the application. Here are the key factors that influence material selection:
Electrical Needs
When electrical systems require high dielectric strength and minimal electrical interference, both Kapton and G10 are strong candidates. Kapton excels in high-voltage applications where electrical insulation must be paired with high-temperature resistance, especially in aerospace and electronics. On the other hand, G10 is often used in industrial applications where its robust electrical insulation properties combined with mechanical strength are needed.
Thermal Needs
If an application involves extreme temperatures, Kapton is often the preferred choice due to its exceptional ability to handle both high and low temperatures. Its resistance to thermal expansion makes it ideal for environments with fluctuating temperatures. G10, while resistant to moderate heat, is better suited for applications that do not involve the extreme conditions that Kapton can handle.
Mechanical Needs
When mechanical strength and impact resistance are crucial, G10 is the better option. Its fiberglass-reinforced structure gives it superior tensile strength and rigidity, which is critical for applications in transformers, electrical panels, and machine parts. Kapton, while flexible, does not offer the same level of impact resistance and is better suited for applications that prioritize thermal stability and electrical insulation.
Conclusion
The versatility of Kapton and G10 in electrical insulation applications demonstrates their critical role in the electrical industry. Kapton is ideal for applications that demand extreme thermal resistance and high-performance electrical insulation, while G10 is a durable, cost-effective option for industrial applications requiring reliable electrical insulation and mechanical strength.
By understanding the key properties and applications of these materials, engineers and manufacturers can select the best material to meet their project requirements, ensuring optimal performance and safety.
Custom Processing Solutions for Kapton and G10
At Bee Plastic, we understand that each project has its unique requirements, and selecting the right materials, such as Kapton and G10, is just the beginning. To fully realize the potential of these materials, our custom processing services enable us to tailor them to meet your exact specifications. Whether you need precision CNC machining, cutting, or die-cutting, our team is equipped with the tools and expertise to deliver solutions that exceed expectations. In this section, we will showcase our custom processing capabilities for Kapton and G10, and how these services can help create tailored solutions for a wide range of industrial needs.
Custom Processing Capabilities for G10 Materials
G10, a fiberglass-reinforced epoxy laminate, is highly valued for its mechanical strength and electrical insulation properties. However, to maximize its effectiveness, custom processing is often required to shape it into parts and products that fit specific applications. At Bee Plastic, we specialize in a variety of custom processing methods for G10 material sheets, including CNC machining, laser cutting, and die-cutting.
CNC Machining for Precision Parts
One of the most popular processing methods we offer for G10 material sheets is CNC machining. This advanced technique allows us to create highly precise components, such as electrical insulation boards, circuit board laminates, and machine parts. G10 CNC machining can be used to create custom shapes, holes, and slots to meet the exact specifications required for industrial applications. The versatility of CNC machining ensures that we can produce custom G10 parts that meet strict tolerances, providing the necessary performance and reliability in demanding environments.
Die-Cutting for Customized Shapes and Sizes
In addition to CNC machining, we also offer die-cutting services for G10. This method is particularly useful for producing large volumes of custom G10 parts in standardized shapes and sizes. Whether you need G10 sheets cut into specific dimensions or want to create intricate cutouts for electrical panels or transformers, die-cutting is an efficient and cost-effective solution. Our die-cutting service ensures fast, precise, and repeatable results, allowing us to meet large production demands while maintaining high quality.
Custom Processing Capabilities for Kapton Materials
Kapton, known for its exceptional thermal resistance and electrical insulation properties, is often used in aerospace, electronics, and high-performance engineering. To bring out the full potential of Kapton, we offer specialized custom processing services, including Kapton die-cutting, laser cutting, and CNC machining. These methods enable us to tailor Kapton sheets and films into precise components that meet the unique demands of your project.
Kapton Die-Cutting for Flexible Insulation Solutions
One of the most commonly used custom processing methods for Kapton is die-cutting, which is ideal for producing custom Kapton parts in a variety of shapes and sizes. Whether you need small Kapton gaskets, insulating films for electronic devices, or specialized high-voltage insulation components, our die-cutting services can handle even the most intricate designs. Kapton die-cutting allows us to cut through the material with precision, ensuring that each part is dimensionally accurate and performs optimally in its intended application.
CNC Machining for Custom Kapton Parts
In addition to die-cutting, we also offer CNC machining for Kapton to create more complex, three-dimensional components. Our CNC machining services for Kapton are perfect for applications that require precise cutouts, shapes, or holes in thicker pieces of the material. Whether you are creating custom electrical insulation components for high-voltage electronics or precision thermal barrier parts for aerospace, CNC machining ensures that the final product meets your exact specifications.
Custom Solutions for Industrial Applications
One of the key advantages of our custom processing services for Kapton and G10 is our ability to offer tailored solutions for a wide range of industrial applications. Here are a few examples of how we can help:
G10 in Electrical Panels and Transformers
Using G10 CNC machining, we can create custom G10 material sheets that fit perfectly into electrical panels and transformers. For instance, we can machine fiberglass sheets to specific thicknesses or cut them into shapes that are ideal for insulating electrical components. This custom approach ensures that your electrical systems are fully insulated, preventing shorts and improving overall safety and performance.
Kapton in Aerospace and Electronics
In aerospace and electronics, we provide custom Kapton die-cutting and machining services to meet the demanding requirements of these industries. Whether it's Kapton insulation films for satellite wiring or Kapton sheets for electronics packaging, we work closely with our clients to ensure that the materials are processed to exact specifications. Our Kapton custom processing services enable us to deliver high-performance parts that perform reliably in extreme conditions.
Tailored Solutions for Your Needs
At Bee Plastic, our custom processing services for Kapton and G10 materials allow us to provide unique solutions for your industrial needs. Whether you require custom G10 material sheets, precision Kapton components, or tailored electrical insulation parts, we have the experience and tools to meet your needs. Our dedicated team ensures that every part is processed with the highest level of precision, quality, and reliability, so you can trust that your products will perform exactly as needed.
Case Study: Custom G10 Solutions for Electrical Insulation
At Bee Plastic, we take pride in offering custom G10 solutions tailored to the specific needs of our clients. In this case study, we’ll highlight a recent project where we worked with a client in the electrical industry to provide customized G10 material for their electrical insulation needs. By utilizing our expertise in CNC machining and custom processing, we were able to deliver a solution that met the client's exact specifications and helped them improve both the safety and performance of their electrical systems.
Project Overview: Custom G10 Material for Electrical Insulation
Our client, a leading manufacturer of high-voltage equipment, came to us with a challenge: they required a custom G10 material solution that could effectively insulate components in high-powered electrical panels. The existing materials they were using were not able to withstand the high-voltage environments, and they needed a more reliable, durable material to ensure both electrical insulation and mechanical stability in their products.
The client's specifications included a material that could handle high dielectric strength, be resistant to thermal stress, and provide sufficient impact resistance. After evaluating their needs, we recommended custom G10 solutions due to its excellent combination of fiberglass reinforcement, electrical insulating properties, and mechanical durability.
The Challenges Faced
One of the main challenges in this project was the client’s need for precise custom G10 parts that would fit into a range of complex configurations within their electrical panels. The G10 material needed to be custom cut and shaped to ensure that it provided optimal insulation while also fitting seamlessly into their electrical systems. Additionally, the parts had to be produced quickly to meet tight production deadlines.
Another challenge was the need to maintain high precision during the CNC machining process, as even the slightest deviation in dimensions could compromise the integrity of the electrical insulation. The client also required G10 material sheets in various thicknesses, which added complexity to the project.
Our Solution: CNC Machining Custom G10 Parts
To address these challenges, we employed our advanced CNC machining capabilities to process the G10 material sheets according to the client’s exact specifications. Our CNC machining process allowed us to produce custom G10 parts with the required precision and tight tolerances, ensuring that each component was an exact fit for the client’s electrical panels.
We used our state-of-the-art machinery to cut, shape, and drill the G10 material into parts that would fit the client's complex design. Our team also ensured that the custom parts met the required dielectric strength to withstand the high-voltage electrical systems in which they would be used. By leveraging our experience with fiberglass-reinforced epoxy laminates, we were able to produce G10 material sheets that not only provided excellent electrical insulation but also withstood the mechanical stresses of the electrical panel environments.
The Benefits: Enhanced Performance and Reliability
The final custom G10 solutions we provided helped the client achieve significant improvements in both the safety and performance of their electrical systems. With the customized G10 parts integrated into their high-voltage electrical panels, the client experienced:
- Improved electrical insulation: The custom G10 parts provided superior dielectric strength, ensuring safe operation of the electrical systems even under high voltage.
- Increased durability: The fiberglass reinforcement in the G10 material provided excellent mechanical strength, preventing deformation or breakage in the electrical panels.
- Faster production turnaround: Thanks to our precise CNC machining capabilities, the client was able to meet their production deadlines without compromising quality.
By choosing the right material and working with Bee Plastic for custom processing, the client was able to significantly improve the reliability and performance of their electrical systems, ultimately ensuring greater safety and operational efficiency.
The Importance of Custom Processing for Optimal Results
This case study illustrates the importance of selecting the right material and custom processing methods to meet the specific needs of a project. While G10 is a versatile and durable material, achieving the best results requires precision processing that tailors the material to the client’s unique specifications. At Bee Plastic, our expertise in CNC machining, laser cutting, and die-cutting ensures that every project is completed with the highest level of quality and precision.
Whether you are working on high-voltage electrical insulation, machine parts, or electrical components, our team can provide the custom solutions you need to achieve optimal performance. Our commitment to delivering quality custom G10 solutions ensures that our clients can trust us to meet their needs and exceed their expectations.
Making the Right Choice: Kapton vs. G10 for Electrical Insulation
When it comes to selecting the best material for electrical insulation, understanding the distinct properties of Kapton and G10 is essential. These two materials stand out in the market for their exceptional capabilities, but their suitability depends heavily on the specific requirements of your application. Kapton offers superior thermal resistance and flexibility, ideal for high-temperature environments, while G10, with its fiberglass reinforcement, provides excellent dielectric strength and mechanical durability, making it perfect for structural applications like circuit boards and electrical panels.
Key Differences Between Kapton and G10: What’s Best for Your Project?
The decision between Kapton and G10 ultimately boils down to the unique needs of your project. If your work involves components exposed to extreme temperatures, Kapton is the top choice due to its exceptional resistance to heat. On the other hand, if your project demands a robust material that offers both electrical insulation and mechanical strength, G10 should be your go-to option. Each material has its strengths, so choosing the right one will directly impact the performance, safety, and longevity of your electrical systems.
Selecting the Best Material: Expert Guidance for Your Electrical Needs
Choosing the right material for your electrical insulation needs is critical to ensuring that your components perform at their best, especially in demanding environments. The selection of Kapton vs. G10 should be made based on the specific thermal, electrical, and mechanical requirements of your project. Working with a trusted expert can help you navigate these choices, ensuring that the material you choose will meet both your technical and budgetary needs.
Ready to Find the Perfect Material? Contact Us for Custom Processing Solutions!
At Bee Plastic, we specialize in providing custom G10 processing and solutions tailored to your specific needs. Our team of experts can help you choose the right material and guide you through the custom processing options, such as CNC machining, die-cutting, and laser cutting, to create precisely what your project requires.
