Choosing the right glass epoxy laminate for your project can be challenging, especially when deciding between G10 vs FR4. Both materials offer excellent performance, but each has specific strengths. G10 is known for its superior mechanical strength, making it ideal for industrial applications and high-stress environments like aerospace. On the other hand, FR4 is widely used in electronics, particularly in printed circuit boards (PCBs), due to its flame retardant properties and UL 94V-0 certification. This blog post explores the differences between G10 and FR4, covering topics such as high-temperature insulation, moisture resistance, and dielectric properties. Whether you need CNC machining for G10 or FR4, understanding their applications can help you make an informed decision. Discover how these fiberglass epoxy laminates perform under pressure and which one is best for your specific project needs.
🎉🎉🎉Limited Time Offer Use code: QR4GNY08SHVR at checkout and enjoy a special discount on your entire order! 👉 FR4 fiberglass plastic

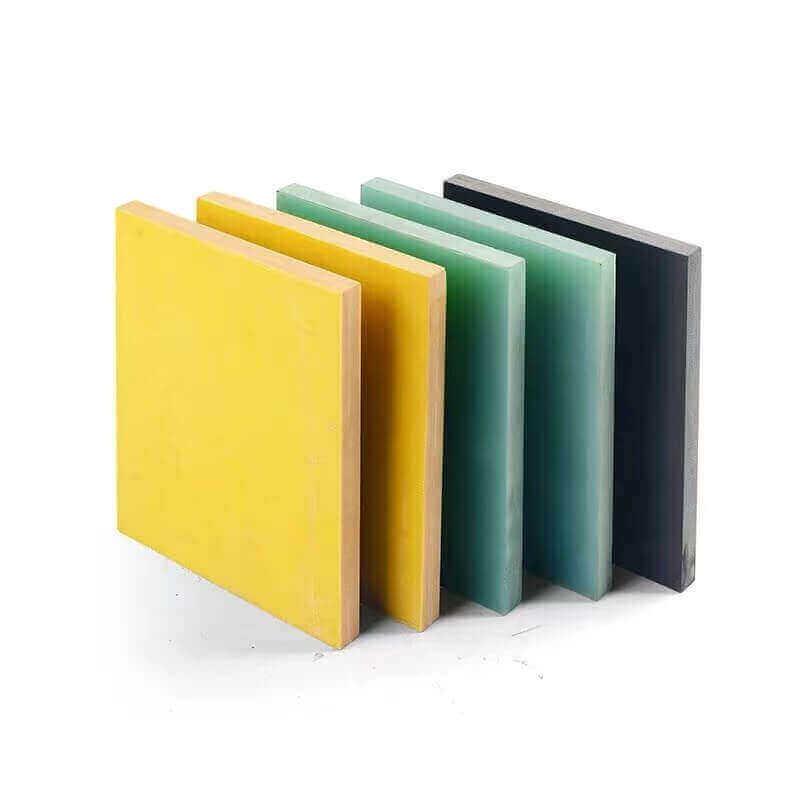

The Composition and Structure of G10 and FR4 Laminates
Understanding the makeup of G10 and FR4 glass epoxy laminates is essential for selecting the right material for specific applications. Both materials are composed of epoxy resin and fiberglass cloth, but they differ significantly in their properties and uses due to the inclusion of flame retardant additives in FR4.
Core Materials of G10 and FR4
Both G10 and FR4 are constructed from woven fiberglass cloth impregnated with an epoxy resin binder. This combination is then cured under pressure and heat to form a rigid, durable laminate that exhibits excellent mechanical and electrical properties.
- G10 is renowned for its exceptional mechanical strength, making it ideal for use in demanding environments such as in aerospace and industrial applications where durability is crucial.
- FR4 includes a flame retardant additive, typically brominated epoxy, which provides it with UL 94V-0 flame resistance, making it suitable for use in electronic applications such as circuit board manufacturing.
Significance of Epoxy Resin and Fiberglass
The use of epoxy resin in both G10 and FR4 ensures excellent bonding strength and contributes to the material's moisture resistance and electrical insulation properties. The fiberglass cloth provides structural strength, enhancing the laminate's tensile and compressive strengths.
UL 94V-0 Flame Retardant Standards
The UL 94V-0 standard is critical for materials used in electronic applications where fire resistance is a safety requirement. FR4's compliance with this standard ensures that it can safely be used in the manufacture of electronic devices, including high-power electrical insulators and PCBs.
By understanding these fundamental differences, engineers and designers can make informed decisions when choosing between G10 and FR4 for their specific applications, ensuring optimal performance and compliance with safety standards.
G10 vs FR4: Comparing Mechanical Strength and Durability
When comparing G10 and FR4, it’s essential to understand how these materials differ in terms of mechanical strength and durability. Both materials are renowned for their resilience, but they excel in different areas depending on their intended applications. Let's explore the specific characteristics of each and how they perform under stress.
Mechanical Strength of G10
G10 is often chosen for applications that demand high mechanical strength and toughness. It is composed of epoxy resin and fiberglass cloth, which gives it exceptional tensile strength and compression resistance. This makes G10 ideal for aerospace components, industrial insulation, and machinery parts, where materials must withstand high stress, impact, and wear over time.
One of the key advantages of G10 is its ability to perform in high-temperature environments without degrading, making it suitable for use in industries that require thermal stability. Additionally, its moisture resistance ensures that it maintains its structural integrity even in humid or wet conditions.
Durability and Fire Resistance of FR4
While FR4 shares much of G10’s structural strength, it offers a unique advantage in fire resistance. FR4 is designed with a flame retardant additive that allows it to meet the stringent UL 94V-0 standard. This flame retardancy makes FR4 a safer option in electronic applications, particularly in the manufacturing of printed circuit boards (PCBs) and other electrical insulation components.
Although FR4 has slightly lower mechanical toughness compared to G10, its balanced strength and fire resistance make it highly durable in environments where flame resistance is a crucial factor. It performs well in high-temperature applications, and its electrical insulation capabilities ensure safe and reliable operation in electronics and power systems.
Choosing the Right Material for Your Application
If your project requires mechanical strength above all else, particularly for aerospace or heavy-duty industrial equipment, G10 is the preferred choice due to its tensile strength and durability under stress. However, if fire resistance and electrical insulation are critical, such as in PCBs or electronic devices, FR4 is the better option due to its UL 94V-0 certification and balanced durability.
Flame Retardancy: Why FR4 Is the Preferred Choice for Electronics
When it comes to flame retardant materials in electronic applications, FR4 is the go-to choice due to its outstanding fire-resistant properties. Designed to meet the highest safety standards, FR4 is widely used in printed circuit boards (PCBs) and other high-temperature environments where fire hazards are a concern. Its ability to self-extinguish and prevent flame propagation makes it a critical material in ensuring the safety and functionality of electronic devices.
What Makes FR4 Flame Retardant?
The key to FR4's flame retardancy lies in the brominated epoxy resin used in its construction. This additive provides fire resistance, allowing the material to withstand extreme temperatures without catching fire. FR4's ability to resist combustion distinguishes it from other laminates, such as G10, which lacks this flame-retardant feature.
By embedding flame retardant additives into the epoxy resin matrix, FR4 can effectively slow down or halt the spread of flames, ensuring that it complies with strict safety standards. This makes it ideal for use in electronics, where the risk of overheating or short circuits is ever-present.
The Importance of UL 94V-0 Certification
One of the most critical factors that sets FR4 apart from other materials, such as G10, is its UL 94V-0 certification. This standard, established by Underwriters Laboratories (UL), is used to classify plastics according to their flame-retardant properties. For a material to achieve UL 94V-0 status, it must self-extinguish within 10 seconds of exposure to flame and must not emit flaming particles or create secondary ignition.
This certification is particularly important for electronic components, as it ensures that materials like FR4 can prevent the spread of fire in high-temperature environments. The UL 94V-0 standard is a safety benchmark for electrical insulators and PCBs, where even a small spark could result in catastrophic damage if not contained.
Why FR4 is Ideal for Printed Circuit Boards (PCBs)
The use of FR4 in PCBs is widespread because of its flame-resistant properties and excellent electrical insulation. In addition to its fire retardancy, FR4 offers a low coefficient of thermal expansion, meaning that it remains stable in high-temperature applications. This is essential for printed circuit boards, which must operate in environments that may generate significant heat during use.
Unlike G10, which is more suited for mechanical applications, FR4 is optimized for electrical insulation and flame resistance. This makes it the preferred material for electronics, particularly in power supplies, transformers, and switching devices, where fire safety is paramount.
Comparing FR4 to G10 for High-Temperature Applications
While G10 offers impressive mechanical strength, it does not provide the same level of fire resistance as FR4. This limits G10's applicability in situations where fire hazards or electrical faults could pose a significant risk. On the other hand, FR4’s flame retardant nature and UL 94V-0 certification make it an indispensable material in high-temperature electronic applications.
By selecting FR4 over G10 for PCBs and electrical insulators, engineers and manufacturers can ensure a higher level of fire safety while maintaining the required electrical performance.
Applications of G10 in Aerospace and Industrial Manufacturing
G10 is an exceptionally versatile material widely used in aerospace, marine, and industrial manufacturing due to its impressive mechanical strength, high-temperature insulation, and moisture resistance. These qualities make G10 ideal for applications where materials must endure extreme conditions and maintain structural integrity. Let’s explore some of the most common and critical use cases for G10 in these high-stress environments.
G10 in Aerospace Applications
In the aerospace industry, materials must be able to withstand extreme temperatures, high pressure, and mechanical stress. G10 excels in these conditions due to its unique composition of fiberglass cloth and epoxy resin. Its high-temperature insulation properties allow it to maintain performance even in elevated temperature environments, making it suitable for components like insulators, structural supports, and machinery parts used in aircraft and spacecraft.
- Thermal stability is a key factor in aerospace applications, and G10 provides excellent heat resistance, preventing deformation or breakdown in high-temperature areas. For example, G10 is often used as thermal insulation in areas where components are exposed to high heat from engines or atmospheric re-entry.
G10 in Marine and Subsea Engineering
In marine environments, materials are constantly exposed to moisture and saltwater, both of which can degrade many industrial materials over time. G10's moisture resistance ensures it performs reliably in underwater applications, where it is commonly used for hull components, insulators, and structural elements in submarines and ships.
Its corrosion resistance is another factor that makes G10 ideal for marine applications. The fiberglass and epoxy resin combination in G10 prevents water from penetrating the material, offering long-term durability in harsh marine conditions. This quality is vital in mechanical parts that require long-lasting structural integrity in moisture-rich environments, such as pumps and valve components used in offshore platforms and subsea equipment.
High-Temperature Insulation in Industrial Manufacturing
Industrial manufacturing often involves high-heat processes, where materials like G10 excel due to their high-temperature resistance. In applications such as furnace linings, heat shields, and thermal insulators, G10's dielectric properties and ability to maintain strength in extreme temperatures are crucial.
This material is also highly suitable for CNC machining, allowing manufacturers to create precise parts with minimal dimensional changes due to heat. CNC machining G10 results in precision components for use in industrial equipment, power transformers, and insulators in high-stress environments. Additionally, G10's mechanical strength ensures the durability of these components under constant pressure and wear.
Electrical Insulation and Dielectric Properties
G10's dielectric properties are another reason it’s widely used in industrial manufacturing and aerospace. Its ability to provide electrical insulation under high voltages makes it ideal for electronic devices and power systems. Whether used as insulation boards or protective components in electrical panels, G10 ensures the safe operation of electrical systems in high-voltage industrial environments.
Moreover, G10's low moisture absorption means that it retains its insulating properties even in humid conditions, making it the material of choice for high-voltage insulators in outdoor and industrial power systems.
G10 in High-Stress Mechanical Applications
In high-stress environments, G10 is often used for machinery parts, structural supports, and jigs. The fiberglass and epoxy resin structure provides high tensile strength, allowing components to withstand heavy loads and constant mechanical pressure. This makes it ideal for parts that experience vibration, friction, and mechanical wear in industrial equipment, conveyor systems, and manufacturing machinery.
Because G10 offers both mechanical strength and durability, it can withstand extreme stress while maintaining its structural integrity over time, reducing the need for frequent replacements and repairs.
By leveraging G10’s high-performance characteristics, industries like aerospace, marine, and manufacturing can produce stronger, more reliable components that perform well even under extreme conditions. Whether it's thermal insulation, moisture resistance, or mechanical durability, G10 remains an indispensable material for these demanding sectors.
FR4 in Electronics: The Backbone of Printed Circuit Boards
FR4 is widely regarded as the backbone material for printed circuit boards (PCBs) due to its unique combination of electrical insulation, thermal stability, and moisture resistance. These characteristics make FR4 the perfect choice for high-voltage and high-temperature environments where reliability and safety are paramount.
Electrical Insulation Properties of FR4
At the heart of FR4’s popularity in electronics is its exceptional electrical insulation. Composed of fiberglass cloth and epoxy resin, FR4 offers a high dielectric strength, making it the material of choice for PCBs and other electronic components that require strong insulation to prevent electrical shorts.
The dielectric properties of FR4 ensure that it can handle high-voltage environments without losing its insulating capabilities, which is critical for ensuring the safe operation of electronic circuits. In power supplies and transformers, where high voltage and current flow are a concern, FR4 prevents electrical interference and safeguards the system against malfunctions.
Thermal Stability in High-Temperature Environments
Another critical reason FR4 is favored in electronics is its ability to maintain thermal stability in high-temperature environments. When electronic devices are in operation, they often generate significant heat, and materials like FR4 are specifically designed to resist this heat without degrading.
The epoxy resin in FR4 allows it to withstand temperatures up to 140°C (284°F), making it suitable for PCB manufacturing and other electronics that need to function in high-heat settings. Unlike some other materials that may warp or break down under extreme temperatures, FR4 maintains its structural integrity, ensuring long-term performance and reliability.
Moisture Resistance in Sensitive Electronic Components
In many electronic devices, exposure to moisture can be a significant problem, leading to corrosion, short circuits, and even total system failure. FR4 stands out due to its low water absorption rate, which ensures that it remains stable and effective even in humid environments.
Whether used in outdoor electronics, marine applications, or high-humidity industrial settings, FR4 retains its insulating properties and continues to protect sensitive electronic circuits. The fiberglass construction enhances FR4's moisture resistance, making it highly durable and able to perform even when exposed to adverse environmental conditions.
The Role of FR4 in Printed Circuit Boards (PCBs)
The rigidity and versatility of FR4 make it the perfect material for the substrate layers in PCBs. These printed circuit boards form the foundation of nearly all modern electronics, from consumer gadgets to industrial machinery. The thermal resistance and electrical insulation properties of FR4 allow for the intricate design of multi-layer PCBs, enabling the manufacture of complex electronics that can withstand high power outputs and continuous operation.
With FR4's flame retardant nature, certified under UL 94V-0, it also ensures that any risks of overheating or short circuits leading to fire are minimized, providing a critical safety feature in high-performance electronics.
CNC Machining G10 and FR4: Precision in Industrial Applications
Both G10 and FR4 are highly sought after in industrial settings due to their unique combination of mechanical strength, dimensional stability, and machinability. These materials are widely used in CNC machining processes, allowing manufacturers to create precise components for a variety of industries. Despite their differences in flame retardancy, both materials maintain their structural integrity under intense machining conditions, making them reliable choices for industrial applications.
Machinability of G10: Toughness for Mechanical Parts
G10 is known for its high mechanical strength and toughness, making it a preferred material for precision machining. When processed using CNC machines, G10 maintains its dimensional stability, meaning it does not warp or lose its shape under high-pressure or high-temperature conditions. This is particularly important in aerospace, automotive, and military applications, where G10 components are expected to perform under extreme stress.
One of the advantages of CNC machining G10 is its ability to produce intricate designs without compromising the material’s integrity. The fiberglass cloth and epoxy resin structure provide a durable base, allowing for tight tolerances in parts like jigs, fixtures, and insulators. Additionally, G10’s moisture resistance ensures that machined parts can be used in wet or humid environments, making it ideal for marine applications.
FR4 and CNC Machining: Electrical Insulation with Precision
While FR4 shares many of G10’s mechanical qualities, its flame retardant properties make it a better choice for electrical insulation components. When CNC machining FR4, the material maintains its dimensional stability even under intense heat, which is essential for components used in high-temperature environments like printed circuit boards (PCBs) and electrical transformers.
During the CNC machining process, FR4 holds up well against the wear and tear of cutting and drilling. Its UL 94V-0 certification ensures that even after machining, FR4 retains its flame-resistant properties, making it a crucial material for electronics manufacturing. Machined FR4 components are used in high-voltage insulation, PCB substrates, and electronic enclosures, where electrical safety is a top priority.
Maintaining Dimensional Stability in Machined Parts
Both G10 and FR4 exhibit exceptional dimensional stability when machined, meaning that the components produced maintain their exact measurements over time. This is critical in precision industries like aerospace and electronics, where even the smallest deviation can lead to system failures. The fiberglass and epoxy resin matrix in both materials ensures that machined parts remain rigid and reliable, even when exposed to high pressure or extreme temperatures.
Moreover, CNC machining allows for the creation of custom parts with intricate designs, such as insulators, brackets, and bushings, that can withstand mechanical stress and environmental factors like moisture and heat. Whether it’s for mechanical strength or electrical insulation, CNC machining provides the precision needed to manufacture high-performance components from both G10 and FR4.
Applications of CNC Machined G10 and FR4 Components
Due to their versatility and precision, CNC machined G10 and FR4 components are used across a wide range of industries. G10 finds applications in military-grade equipment, automotive parts, and aerospace components, where mechanical strength and durability are crucial. Meanwhile, FR4 is indispensable in electronics, particularly in PCBs, switches, and transformers, where its flame retardancy and electrical insulation properties are needed.
By utilizing CNC machining technology, manufacturers can produce high-quality, custom components from both G10 and FR4, ensuring precise tolerances, long-lasting performance, and resistance to environmental stressors.
Common Questions and Answers about G10 and FR4 Materials and BeePlastic’s Customization Services
Here’s a comprehensive list of the most common questions and answers related to G10 and FR4 materials, as well as BeePlastic's customization options. This guide will help address typical inquiries, making it easier for customers to understand the materials and services provided by BeePlastic.
1. What is the difference between G10 and FR4?
G10 and FR4 are both glass epoxy laminates, but the key difference lies in flame resistance. FR4 contains a flame-retardant additive and is UL 94V-0 certified, making it ideal for printed circuit boards (PCBs) and other high-temperature or flame-sensitive applications. G10, on the other hand, lacks this flame retardant but excels in mechanical strength, making it suitable for aerospace and industrial applications where flame retardancy is not required.
2. What are the typical applications of G10?
G10 is commonly used in industries that require high mechanical strength and durability, such as aerospace, marine, and military applications. It is ideal for components like insulators, structural supports, and machinery parts, especially in high-stress environments where toughness is critical.
3. Why is FR4 preferred for printed circuit boards (PCBs)?
FR4 is favored for PCBs due to its flame retardant properties, thermal stability, and excellent electrical insulation. It provides UL 94V-0 fire resistance, which ensures that the material can self-extinguish in the event of overheating, making it a safe and reliable choice for electronics.
4. Can BeePlastic customize G10 and FR4 components?
Yes, BeePlastic can handle a wide range of customization options for G10 and FR4 materials, including sample customization and batch customization. Whether you need specific dimensions, thicknesses, or shapes, we can work with your requirements to create tailored solutions for your project.
5. What file formats does BeePlastic accept for customization?
BeePlastic accepts a variety of file formats for customization, including PDF, CAD, and other standard design formats. This allows you to provide precise specifications for the custom parts you need, ensuring the final product meets your expectations.
6. Is there a minimum order quantity (MOQ) for custom orders?
No, there is no minimum order quantity (MOQ) at BeePlastic. Whether you need a single prototype or a large batch of products, we can accommodate your order, making us an ideal partner for both small and large-scale production.
7. How long is the production cycle for customized orders?
The production cycle for customized orders depends on the order volume and the complexity of the design. At BeePlastic, we ensure real-time communication with clients about production progress, so you are always up-to-date on the status of your order.
8. Does BeePlastic provide samples?
Yes, BeePlastic supports the provision of free samples for customized orders. The samples are free of charge, but customers are responsible for shipping costs. This allows you to evaluate the material and quality before placing a full order.
9. Can FR4 and G10 be CNC machined?
Yes, both G10 and FR4 are highly machinable materials. CNC machining can be used to create precise parts with tight tolerances. BeePlastic specializes in CNC machining, providing components for industries that require high accuracy, such as aerospace and electronics.
10. What industries benefit most from G10 and FR4 materials?
Industries such as electronics, aerospace, marine, and industrial manufacturing benefit from the use of G10 and FR4 materials. FR4 is widely used in electrical insulation and PCBs, while G10 is preferred in mechanical applications where strength and durability are key.
These FAQs cover the most common inquiries regarding the use of G10 and FR4 materials as well as BeePlastic's customization capabilities. Feel free to contact BeePlastic for further details or to discuss specific project needs!
When selecting between G10 and FR4, it's essential to consider the specific demands of your project. G10 offers superior mechanical strength and is ideal for applications in aerospace, marine, and industrial sectors that require high durability. On the other hand, FR4 is the preferred choice for electronics, especially in printed circuit boards (PCBs), due to its flame retardant properties and electrical insulation capabilities. By understanding the unique properties of these glass epoxy laminates, you can ensure that your components perform reliably, even under extreme conditions. Whether you're focusing on thermal stability, moisture resistance, or machinability, both materials offer solutions that cater to a wide range of industrial and electronic applications.
