Introduction to FR-4 Material
What is FR-4 Material?
FR-4 material is a type of composite material composed of woven fiberglass cloth with an epoxy resin binder. This combination provides excellent mechanical strength and electrical insulation properties, making it the standard choice for printed circuit boards (PCBs). The name "FR-4" stands for "flame retardant" and is a grade designated by the National Electrical Manufacturers Association (NEMA).
Composition and Structure
FR-4 material consists of a glass-reinforced epoxy laminate. The fiberglass cloth provides high tensile strength and durability, while the epoxy resin offers excellent adhesion and resistance to environmental factors. This structure results in a robust material that can withstand significant mechanical and thermal stresses, which are common in electronic applications.
Importance in PCB Manufacturing

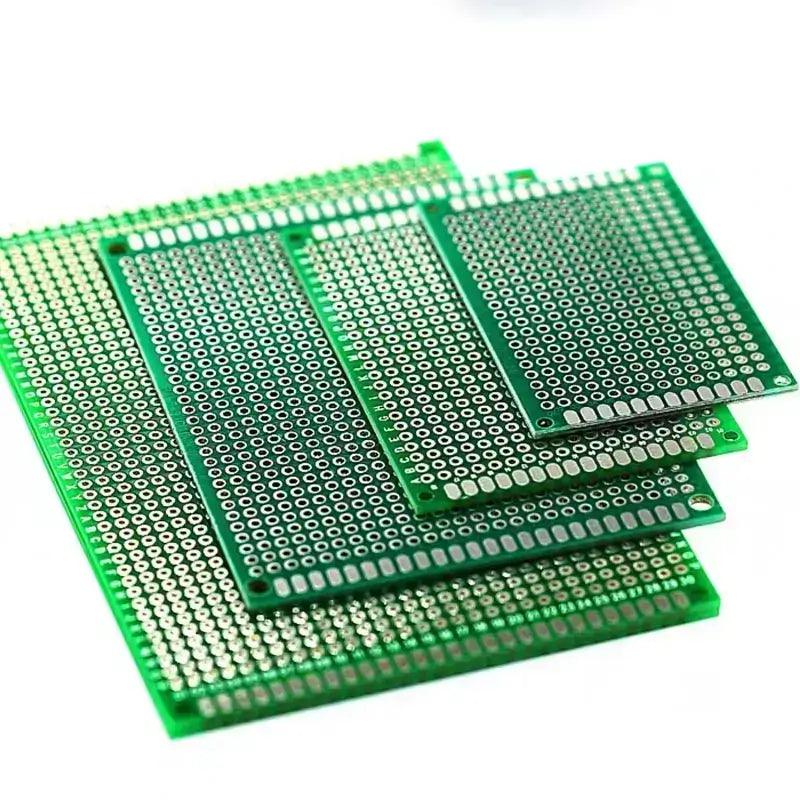

PCB manufacturers widely use FR-4 material due to its versatile properties. Its mechanical stability ensures that the circuit boards remain intact and operational even under harsh conditions. Moreover, FR-4's electrical insulation properties help prevent electrical shorts and maintain signal integrity, crucial for the reliable performance of electronic devices.
Mechanical Properties of FR-4
Understanding the mechanical properties of FR-4 is essential for its effective application in industry. These properties include its tensile strength, flexural strength, and impact resistance, which contribute to the overall durability and performance of PCBs. The material's ability to resist deformation and withstand physical stress makes it ideal for use in a variety of electronic devices.
Applications of FR-4 Material
The use of FR-4 material extends beyond PCB manufacturing into various sectors of the electronics industry. It is commonly found in consumer electronics, automotive systems, telecommunications equipment, and industrial machinery. Its thermal stability and flame retardancy are particularly beneficial in applications where safety and reliability are paramount.
Selecting the Right FR-4 Material
When selecting FR-4 material for specific applications, it is crucial to consider its mechanical and thermal properties. Factors such as thickness, density, and glass transition temperature (Tg) can significantly influence the material's performance. By understanding these properties, engineers and designers can make informed decisions that enhance the functionality and longevity of their electronic products.
For more detailed information on the properties and applications of FR-4 material, check out these comprehensive guides from beeplastic.
Mechanical Strength and Durability of FR-4
Tensile Strength of FR-4
One of the critical mechanical properties of FR-4 material is its tensile strength, which refers to the maximum stress it can withstand while being stretched or pulled before breaking. FR-4 exhibits a high tensile strength, typically ranging from 310 to 440 MPa (megapascals). This characteristic makes it highly resistant to stretching forces, ensuring that the printed circuit boards (PCBs) remain intact and operational under mechanical stress. This strength is crucial during both the manufacturing process and operational phases, as it prevents the boards from breaking or deforming when subjected to force.
Flexural Strength and Modulus
Flexural strength is another vital property of FR-4. It measures the material's ability to resist deformation under load. FR-4 typically has a flexural strength of about 480 MPa, indicating its capacity to withstand bending forces without cracking or breaking. Additionally, the flexural modulus of FR-4, which indicates the material's stiffness, is about 18 GPa (gigapascals). This high modulus ensures that FR-4 maintains its shape and rigidity under various mechanical loads, making it an ideal choice for robust electronic applications that demand both strength and stability.
Impact Resistance
Impact resistance refers to FR-4's ability to absorb energy and resist sudden forces or shocks without fracturing. This property is essential for electronics manufacturing where PCBs might be subjected to accidental drops or impacts during assembly and usage. FR-4's high impact resistance ensures that the boards can endure such conditions without damage, thereby enhancing the reliability and durability of electronic devices.
Resistance to Mechanical Stresses
During the manufacturing process, PCBs undergo various mechanical stresses, including drilling, cutting, and assembly. The high mechanical strength of FR-4 ensures that it can withstand these stresses without compromising its structural integrity. This resilience is crucial for maintaining the precision and performance of the circuit boards throughout the production stages. Moreover, in operational environments, FR-4's robust mechanical properties prevent issues such as warping, cracking, and mechanical fatigue, thereby extending the lifespan of the PCBs.
Application in Robust Electronic Devices
The exceptional mechanical strength and durability of FR-4 material make it suitable for a wide range of robust electronic applications. It is commonly used in industries such as automotive, aerospace, and telecommunications, where electronic components are exposed to harsh conditions and mechanical stresses. The ability of FR-4 to maintain its integrity under such conditions ensures the reliability and safety of critical electronic systems.
By understanding the mechanical properties of FR-4, industry professionals can better appreciate its role in ensuring the durability and performance of PCBs. This knowledge aids in selecting the right materials for specific applications, optimizing the design and manufacturing processes, and ultimately delivering high-quality electronic products.
Thermal Properties of FR-4
Thermal Conductivity
Thermal conductivity is a crucial property of FR-4 material, reflecting its ability to conduct heat. FR-4 typically has a thermal conductivity value ranging from 0.3 to 0.5 W/m·K (watts per meter-kelvin). This relatively low thermal conductivity means that FR-4 is not highly efficient at dissipating heat, which can lead to localized hotspots on the printed circuit board (PCB). However, this characteristic also helps to insulate heat-producing components from one another, reducing the risk of thermal interference and overheating. This balance makes FR-4 suitable for a variety of electronic applications where moderate thermal management is acceptable.
Glass Transition Temperature (Tg)
The glass transition temperature (Tg) of FR-4 is another significant thermal property. Tg refers to the temperature at which the material transitions from a hard, glassy state to a softer, rubbery state. For FR-4, this temperature typically ranges from 130°C to 180°C, depending on the specific grade and composition. When operating temperatures approach or exceed the Tg, the mechanical and electrical properties of FR-4 can degrade, potentially leading to PCB failure. Therefore, selecting an appropriate FR-4 grade with a suitable Tg is essential for ensuring the PCB can withstand the expected operating temperature range without compromising its performance.
Performance in High-Temperature Environments
In high-temperature environments, the thermal properties of FR-4 play a critical role in maintaining PCB reliability. The material's thermal stability ensures that it can endure the heat generated by electronic components during operation and the high temperatures involved in the soldering process without deforming or losing structural integrity. This stability is crucial for applications in sectors such as automotive, aerospace, and industrial electronics, where electronic systems often operate under extreme thermal conditions.
Thermal Management Techniques
Despite its moderate thermal conductivity, various thermal management techniques can enhance the performance of FR-4 in high-temperature environments. Techniques such as the use of heat sinks, thermal vias, and strategic component placement can help dissipate heat more effectively. Additionally, designers may opt for high-performance variants of FR-4 with improved thermal properties for applications requiring better heat dissipation and higher Tg values.
Importance of Thermal Properties for PCB Reliability
The thermal properties of FR-4 are crucial for maintaining the reliability and longevity of PCBs. Proper thermal management ensures that electronic components remain within their safe operating temperatures, preventing issues such as thermal stress, overheating, and subsequent failure. Understanding these properties allows engineers and designers to make informed decisions when selecting materials and designing PCBs for applications that involve significant thermal challenges.
Moisture Absorption and Environmental Stability
Resistance to Moisture Absorption
FR-4 material is well-regarded for its excellent resistance to moisture absorption, a critical property for many electronic applications. This resistance is quantified by its low moisture absorption rate, typically around 0.10% to 0.20% by weight over a 24-hour period of immersion. This minimal absorption ensures that the mechanical and electrical properties of FR-4 remain stable even in humid environments. The low hygroscopicity of FR-4 means that it maintains its integrity and performance, reducing the risk of short circuits and electrical failures caused by moisture infiltration.
Stability in Various Environmental Conditions
The environmental stability of FR-4 extends beyond moisture resistance. This material exhibits robust performance across a wide range of environmental conditions, including temperature fluctuations, humidity variations, and exposure to chemicals. Its inherent properties, such as thermal stability, chemical resistance, and dimensional stability, ensure that FR-4 can withstand challenging environments without degradation. This stability is crucial for maintaining the reliability and longevity of electronic devices that operate in diverse and sometimes harsh conditions.
Ideal for Humid and Variable Climates
Due to its superior moisture resistance and environmental stability, FR-4 material is particularly suited for applications in humid or variable climates. In regions with high humidity or frequent temperature changes, electronic components can be prone to moisture-related failures. FR-4's ability to resist water absorption and maintain its structural integrity under these conditions makes it an ideal choice for outdoor electronics, marine applications, and other environments where moisture exposure is a concern.
Ensuring Long-Term Performance and Reliability
The combined properties of moisture absorption resistance and environmental stability ensure that electronic devices using FR-4 can deliver consistent performance over their intended lifespan. This reliability is especially important for critical applications in industries such as aerospace, automotive, and telecommunications, where equipment failure due to environmental factors can have significant consequences. By choosing FR-4, manufacturers can enhance the durability and dependability of their products, providing peace of mind to end-users.
Applications Benefiting from FR-4's Properties
Many industries benefit from the unique properties of FR-4 material. In the automotive industry, for example, electronic components are often exposed to varying temperatures and moisture. FR-4's resilience ensures that these components continue to function reliably. Similarly, in aerospace applications, where equipment must perform flawlessly under extreme conditions, FR-4's stability and moisture resistance are invaluable. Telecommunications equipment, which may be installed in outdoor or unprotected environments, also relies on the robust characteristics of FR-4 to maintain continuous operation.
Dielectric Properties and Signal Integrity
Dielectric Constant of FR-4
The dielectric constant (Dk) of FR-4 material is a critical property that impacts the performance of printed circuit boards (PCBs). The dielectric constant typically ranges from 4.2 to 4.8, depending on factors such as resin content and fiberglass weave. This property measures the material's ability to store electrical energy in an electric field. A stable and consistent Dk is essential for ensuring reliable signal transmission and impedance control in high-frequency applications. Variations in the dielectric constant can lead to signal integrity issues, causing signal loss and degradation.
Dissipation Factor
The dissipation factor (Df), also known as the loss tangent, is another important dielectric property of FR-4. This factor indicates how much electrical energy is lost as heat within the material. For FR-4, the dissipation factor is typically around 0.02 at 1 MHz. Lower Df values are preferable for high-frequency applications as they minimize energy loss, ensuring better signal integrity. High Df values can result in greater signal attenuation and reduced performance, especially in applications operating at higher frequencies.
Impact on Signal Integrity
The dielectric properties of FR-4 play a significant role in maintaining signal integrity in electronic circuits. Signal integrity refers to the preservation of the signal's quality and fidelity as it travels through the PCB. A stable dielectric constant ensures consistent signal propagation speed, while a low dissipation factor minimizes energy loss. In high-frequency applications, even small variations in these properties can lead to significant performance issues, such as signal distortion, increased noise, and reduced data transmission rates.
Importance for High-Frequency Applications
High-frequency applications, such as RF (radio frequency) and microwave circuits, demand materials with excellent dielectric properties to maintain signal integrity. FR-4 material, with its moderate dielectric constant and low dissipation factor, is suitable for many standard applications. However, for ultra-high-frequency applications, materials with lower Dk and Df values, such as specialized high-frequency laminates, may be more appropriate. Selecting the right grade of FR-4 or alternative materials is crucial for achieving optimal performance in these applications.
Selecting the Right Grade of FR-4
Different grades of FR-4 offer varying dielectric properties to cater to specific electronic design needs. Engineers must consider the dielectric constant and dissipation factor when selecting the appropriate grade for their application. For instance, high-speed digital circuits and high-frequency RF applications may require FR-4 grades with tighter Dk tolerances and lower Df values to ensure minimal signal loss and consistent performance. Evaluating these properties helps in making informed decisions that enhance the reliability and efficiency of the final product.
Conclusion
Understanding the dielectric properties of FR-4 material is essential for ensuring the signal integrity and overall performance of PCBs in high-frequency applications. By selecting the right grade of FR-4, manufacturers and designers can optimize their electronic designs to meet the demanding requirements of modern electronic devices.
Comparative Analysis with Alternative Materials
Introduction to PCB Materials
When selecting a material for printed circuit boards (PCBs), it's essential to understand the strengths and limitations of various options. FR-4 material is widely used due to its excellent balance of properties and cost-effectiveness. However, alternative materials, such as high-frequency laminates, offer distinct advantages for specific applications. This comparative analysis highlights the key differences to help you make informed decisions.
Strengths of FR-4 Material
FR-4 is renowned for its mechanical strength, thermal stability, and cost-effectiveness. It provides a robust substrate for PCBs, ensuring durability and reliability in standard electronic applications. FR-4’s dielectric properties—with a dielectric constant typically around 4.2 to 4.8 and a dissipation factor around 0.02—make it suitable for many general-purpose PCBs. Additionally, its flame retardancy (meeting UL 94V-0 standards) and resistance to moisture absorption contribute to its wide acceptance in the industry.
Limitations of FR-4 Material
Despite its many advantages, FR-4 has limitations, especially in high-frequency and high-performance applications. The material's dissipation factor can lead to significant signal loss at higher frequencies, making it less suitable for RF and microwave circuits. Furthermore, the dielectric constant of FR-4 can fluctuate with changes in frequency and temperature, impacting signal integrity and impedance control in high-speed digital circuits. These limitations necessitate the consideration of alternative materials for specialized applications.
High-Frequency Laminates
High-frequency laminates, such as Rogers RO4350B, are specifically designed to overcome the shortcomings of FR-4 in high-frequency applications. These materials have a much lower dissipation factor (around 0.004), which minimizes signal loss and ensures better performance in RF and microwave circuits. Their dielectric constant is also more stable across a wide range of frequencies and temperatures, providing superior impedance control and signal integrity.
Thermal Management and Stability
High-frequency laminates often exhibit better thermal conductivity and a higher glass transition temperature (Tg) compared to FR-4, making them more suitable for applications with high thermal loads. For example, materials like PTFE-based laminates (e.g., Rogers RT/duroid 6002) offer excellent thermal stability and minimal thermal expansion, which are crucial for maintaining the performance of PCBs in extreme temperature conditions.
Cost Considerations
One of the primary advantages of FR-4 material is its cost-effectiveness. It is generally more affordable than high-frequency laminates, making it the preferred choice for standard applications where extreme performance is not required. However, for applications where signal integrity, thermal performance, and reliability are critical, the higher cost of high-frequency laminates can be justified by their superior properties.
Application-Specific Material Selection
The choice between FR-4 and alternative materials should be based on the specific requirements of your application. For general-purpose electronics, consumer devices, and applications with moderate performance demands, FR-4 remains an excellent choice due to its balanced properties and lower cost. Conversely, for high-frequency applications, high-speed digital circuits, and environments with significant thermal or mechanical stresses, high-frequency laminates and other advanced materials offer the necessary performance enhancements.
Conclusion
Understanding the strengths and limitations of FR-4 material in comparison to alternative materials is crucial for optimizing PCB design and performance. By carefully evaluating the specific needs of your application, you can select the most appropriate material to ensure the reliability and efficiency of your electronic products.
Frequently Asked Questions about FR-4 Material and BeePlastics Customization Services
1. What are the key mechanical properties of FR-4 material?
Q: What are the key mechanical properties of FR-4 material?
A: FR-4 material is known for its excellent mechanical properties, which include high tensile strength (310-440 MPa), high flexural strength (approximately 480 MPa), and significant impact resistance. These properties make it suitable for robust electronic applications, ensuring that PCBs can withstand mechanical stresses during manufacturing and operational phases.
2. How does the thermal conductivity of FR-4 affect its performance?
Q: How does the thermal conductivity of FR-4 affect its performance?
A: The thermal conductivity of FR-4, typically ranging from 0.3 to 0.5 W/m·K, affects its ability to dissipate heat. While FR-4 is not highly efficient at conducting heat, it helps insulate heat-producing components from one another, reducing the risk of thermal interference. This property is essential for maintaining the performance and reliability of electronic devices in various applications.
3. Why is the glass transition temperature (Tg) of FR-4 important?
Q: Why is the glass transition temperature (Tg) of FR-4 important?
A: The glass transition temperature (Tg) of FR-4, typically between 130°C and 180°C, is crucial because it indicates the temperature at which the material transitions from a rigid state to a softer, rubbery state. Operating temperatures near or above the Tg can degrade the material's mechanical and electrical properties, potentially leading to PCB failure. Selecting an FR-4 grade with an appropriate Tg ensures reliable performance under expected operating temperatures.
4. How does FR-4 resist moisture absorption?
Q: How does FR-4 resist moisture absorption?
A: FR-4 material has a low moisture absorption rate, typically around 0.10% to 0.20% by weight over 24 hours. This resistance to moisture absorption helps maintain the material's mechanical and electrical properties, making it ideal for applications in humid or variable climates. This property ensures long-term performance and reliability of electronic devices.
5. What are the dielectric properties of FR-4, and why are they important?
Q: What are the dielectric properties of FR-4, and why are they important?
A: FR-4 has a dielectric constant (Dk) of 4.2 to 4.8 and a dissipation factor (Df) of around 0.02 at 1 MHz. These dielectric properties are crucial for maintaining signal integrity in high-frequency applications. A stable dielectric constant ensures consistent signal propagation, while a low dissipation factor minimizes energy loss, making FR-4 suitable for many general-purpose and high-frequency PCBs.
6. How does FR-4 compare to high-frequency laminates?
Q: How does FR-4 compare to high-frequency laminates?
A: While FR-4 is cost-effective and versatile, high-frequency laminates like Rogers RO4350B offer lower dissipation factors (around 0.004) and more stable dielectric constants, which are better suited for RF and microwave circuits. These materials also typically have higher thermal conductivity and Tg, making them preferable for applications requiring superior signal integrity and thermal management.
7. Can BeePlastics undertake custom orders, including samples and batch production?
Q: Can BeePlastics undertake custom orders, including samples and batch production?
A: Yes, BeePlastics can handle any customization, including sample customization and batch production. We tailor our services to meet specific customer needs, ensuring that all orders, whether small or large, receive the same level of attention and quality.
8. What file formats does BeePlastics accept for custom orders?
Q: What file formats does BeePlastics accept for custom orders?
A: BeePlastics accepts a variety of file formats for custom orders, including PDF and CAD. This flexibility ensures that customers can submit their designs in the format that works best for them, facilitating a smooth customization process.
9. Is there a minimum order quantity (MOQ) at BeePlastics?
Q: Is there a minimum order quantity (MOQ) at BeePlastics?
A: No, there is no minimum order quantity (MOQ) at BeePlastics. We cater to all orders, regardless of size, providing flexibility for customers who need small quantities or those who require larger batches.
10. Does BeePlastics provide samples, and what are the costs associated?
Q: Does BeePlastics provide samples, and what are the costs associated?
A: Yes, BeePlastics provides samples. The samples are free of charge; however, customers are responsible for the shipping costs. This policy allows customers to evaluate our products before placing larger orders.
These common questions and answers address the essential aspects of FR-4 material and the customization services offered by BeePlastics. For more detailed information or specific inquiries, please feel free to contact our customer service team.
Conclusion
Understanding the mechanical properties, thermal characteristics, moisture resistance, and dielectric properties of FR-4 material is crucial for optimizing the performance and reliability of printed circuit boards (PCBs). The comprehensive insights provided in this blog post highlight why FR-4 remains a staple in the electronics industry, despite the availability of high-frequency laminates and other advanced materials. By carefully selecting the right grade of FR-4 and leveraging its strengths, engineers and designers can ensure their electronic products meet the demanding requirements of various applications. Additionally, BeePlastics' customization services, including flexible file formats, no minimum order quantities, and free samples, offer tailored solutions to meet your specific needs, ensuring the highest quality and performance of your PCBs. For further assistance or to explore our customization options, please contact BeePlastics today.
